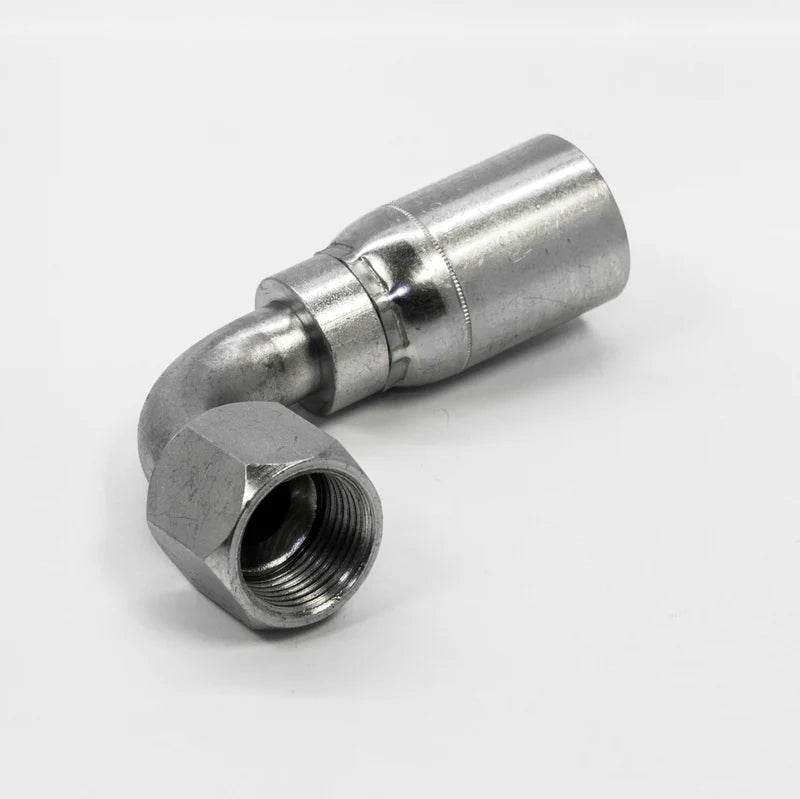

  • The Weatherhead 04U665 is a metal hydraulic hose fitting with a 1/4 hose and a 1/3 JIC female fitting, designed at a 90-degree angle, shown on a white background. It features a threaded end for secure connections.
1 1

Weatherhead

04U-665 | 1/4" Hose x 5/16" JIC/SAE Swivel Fitting - 90 bend | CS26-4x5

04U-665 | 1/4" Hose x 5/16" JIC/SAE Swivel Fitting - 90 bend | CS26-4x5

$10.00 USD
$10.00 USD
Sale Sold out
Shipping calculated at checkout.

These are new Weatherhead 04U-665 fittings.
Compatible with 100R1, 100R2, 100R16 & 100R17 style hoses.


These fittings can be interchanged with the equivalent Couplamatic, Dayco, and Parker hydraulic hose fittings.

Hose Size: 1/4"
Fitting Size: 5/16"
Fitting Type: JIC/SAE
Fitting Style: Female Swivel 90 bend


Compatible with Couplamatic CS26-4X5
Compatible with Vari-Crimp 4157V
Compatible with Parker 139HY-5-4
Compatible with Dayco HY04-05FJ90T
