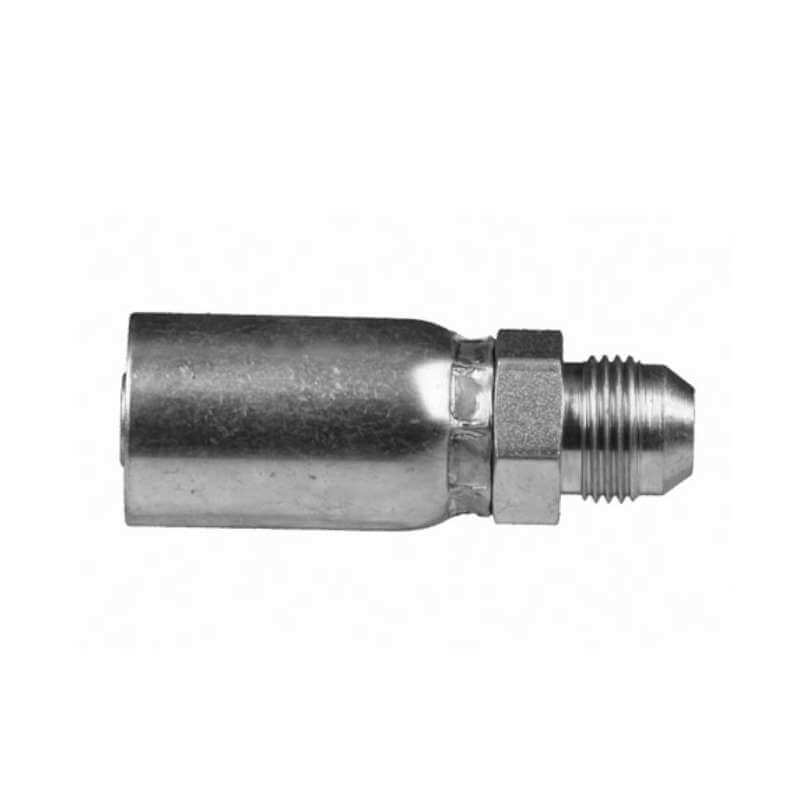

  • The 04U504 | 1/4 Hose x 1/4 Male JIC Fitting (MJ-04-04, CS08-4x4) features a hex nut center, smooth cylindrical left end, and threaded conical right end, resembling Weatherhead fittings and displayed on a plain white background.
  • A Weatherhead 04U-504 solid straight fitting, 1/4 hose x 1/4 JIC, model CS08-4x4, is shown with a hex nut and tapered end against a white background.
  • The 04U-504 | 1/4 Hose x 1/4 JIC Solid Fitting - Straight (CS08-4x4) is shown in side profile, featuring a hexagonal nut and threaded end, with a metal finish on a white background.
  • A 04U-504 fitting (1/4 Hose x 1/4 JIC Straight, CS08-4x4) with a hex nut and threaded end is photographed against a plain white background.
  • The 04U-504 | 1/4 Hose x 1/4 JIC Solid Fitting - Straight (CS08-4x4) metal hydraulic fitting, featuring a central hex nut and threaded end, is shown horizontally against a plain white background.
  • A 04U-504 | 1/4 Hose x 1/4 JIC Solid Fitting - Straight (CS08-4x4) with a hex nut and threaded end is positioned horizontally on a plain white background.
  • Close-up of an 04U504 fitting, featuring a hexagonal nut and a threaded end, specifically designed for connecting 1/4" hydraulic hose fittings in fluid systems. This silver piece is showcased against a simple, light backdrop.
1 7

Weatherhead

04U-504 | 1/4" Hose x 1/4" JIC Solid Fitting - Straight | CS08-4x4

04U-504 | 1/4" Hose x 1/4" JIC Solid Fitting - Straight | CS08-4x4

$3.00 USD
$0.00 USD $3.00 USD
Sale Sold out
Shipping calculated at checkout.

These are new Weatherhead 04U-504 fittings.
Compatible with 100R1, 100R2, 100R16 & 100R17 style hoses.


These fittings can be interchanged with the equivalent Couplamatic, Dayco, and Parker hydraulic hose fittings.

Hose Size: 1/4"
Fitting Size: 1/4"
Fitting Type: JIC
Fitting Style: Male Solid Straight


Compatible with Couplamatic CS08-4X4
Compatible with Vari-Crimp 418V
Compatible with Parker 103HY-4-4
Compatible with Dayco HY04-04MJ
