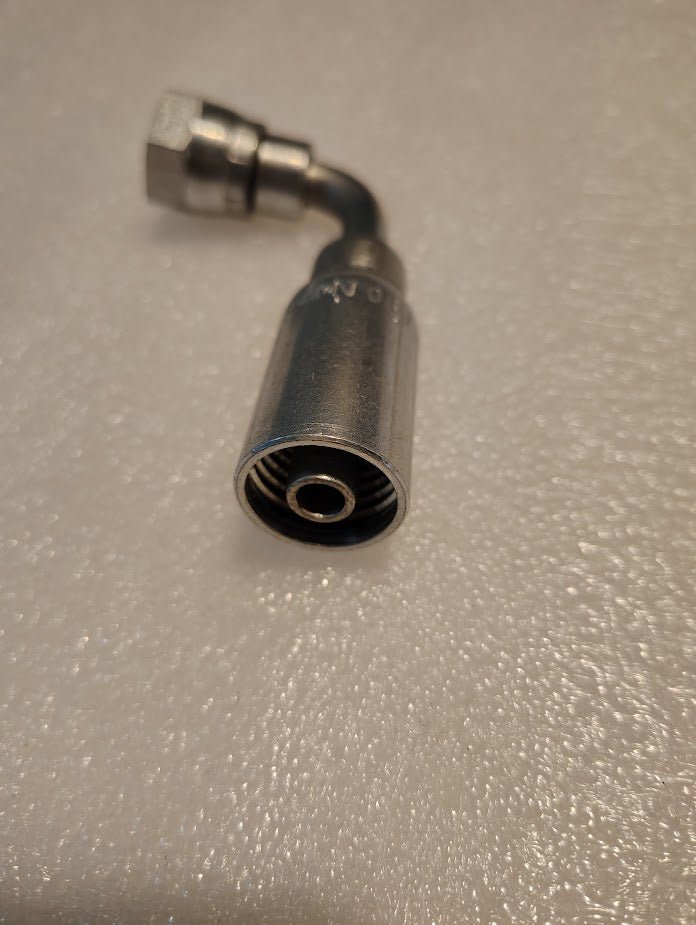

  • The Weatherhead 06U-62D CS44-6X12 is a metallic 3/8 hose x M18x1.5 DIN female fitting with a 90° bend, compatible with 100R series hoses, featuring a threaded hex end and cylindrical connector on a textured white surface.
  • The Weatherhead 06U-62D CS44-6X12 is a 3/8 hose x M18x1.5 DIN female fitting with a 90-degree bend and hex nut on one end, resting on a textured, light-colored surface.
  • Close-up of a Weatherhead 06U-62D fitting (3/8 hose x M18x1.5 DIN female, CS44-6X12) with metal hexagonal body and inner circular opening on a textured, light surface. Ideal for hydraulic hose fittings and 100R series hoses.
  • A close-up of the 06U-62D Weatherhead 3/8 Hose x M18x1.5 DIN Female Fitting (CS44-6X12), a metal hydraulic fitting with a 90° threaded opening on a textured white surface, ideal for use with Weatherhead or 100R series hoses.
  • Close-up of a metal fitting stamped FKN 06U 63, shown against a textured background, resembling the Weatherhead 06U-62D, a 3/8 hose x M18x1.5 DIN female fitting (CS44-6X12) suitable for 100R series hydraulic hoses.

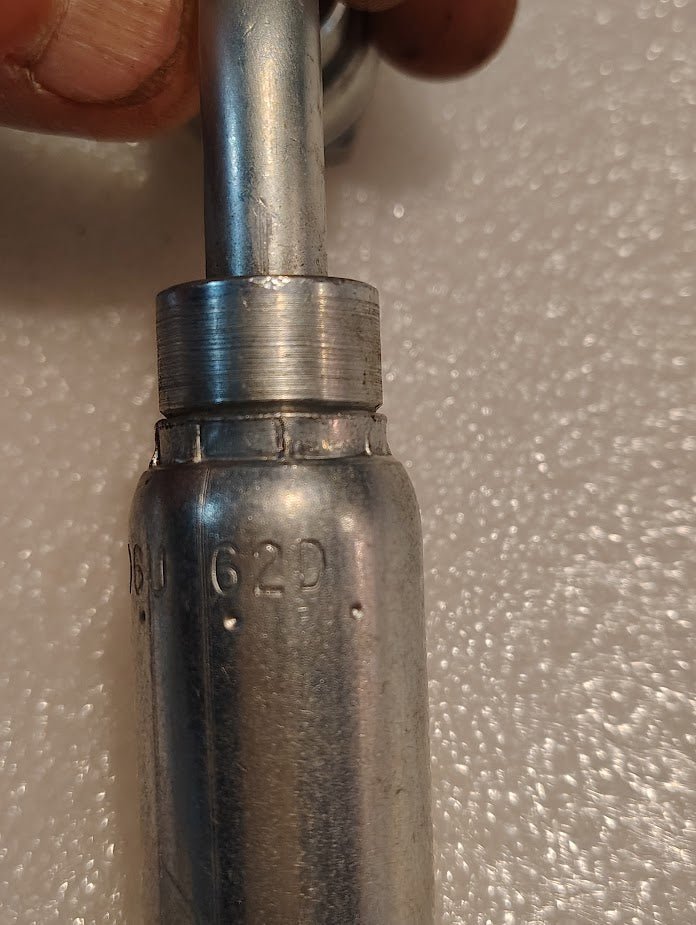

  • A person’s fingers hold a Weatherhead 06U-62D (3/8 Hose x M18x1.5 DIN Female Fitting, CS44-6X12) with “62D” embossed, set against a textured white background.
1 6

Weatherhead

06U-62D | 3/8" Hose x M18x1.5 DIN Light Swivel Fitting - 90 bend | CS44-6X12

06U-62D | 3/8" Hose x M18x1.5 DIN Light Swivel Fitting - 90 bend | CS44-6X12

$15.00 USD
$15.00 USD
Sale Sold out
Shipping calculated at checkout.

These are new Weatherhead 06U-62D fittings.
Compatible with 100R1, 100R2, 100R16 & 100R17 style hoses.


These fittings can be interchanged with the equivalent Couplamatic, Dayco, and Parker hydraulic hose fittings.

Hose Size: 3/8"
Fitting Size: M18x1.5
Fitting Type: DIN Light
Fitting Style: Female Swivel 90 bend


Compatible with Couplamatic CS44-6X12
Compatible with Vari-Crimp 6D62V
Compatible with Parker 1C5HY-12-6
Compatible with Dayco HY06-12RU18A90T
