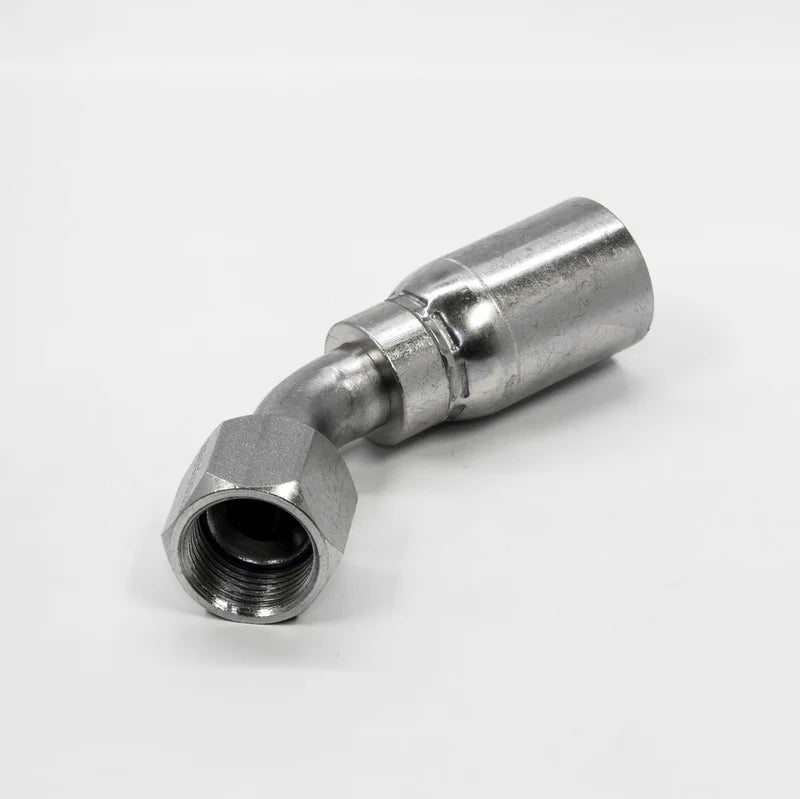

  • The Weatherhead 06U686 is a 3/8 hose to 3/8 JIC female fitting with a 45-degree bend, hexagonal nut on one end, and smooth cylindrical connector on the other, shown against a plain white background.
1 1

Weatherhead

06U-686 | 3/8" Hose x 3/8" JIC/SAE Swivel Fitting - 45 bend | CS25-6x6

06U-686 | 3/8" Hose x 3/8" JIC/SAE Swivel Fitting - 45 bend | CS25-6x6

$9.00 USD
$9.00 USD
Sale Sold out
Shipping calculated at checkout.

These are new Weatherhead 06U-686 fittings.
Compatible with 100R1, 100R2, 100R16 & 100R17 style hoses.


These fittings can be interchanged with the equivalent Couplamatic, Dayco, and Parker hydraulic hose fittings.

Hose Size: 3/8"
Fitting Size: 3/8"
Fitting Type: JIC/SAE
Fitting Style: Female Swivel 45 bend


Compatible with Couplamatic CS25-6X6
Compatible with Vari-Crimp 6157V
Compatible with Parker 137HY-6-6
Compatible with Dayco HY06-06FJ45T
