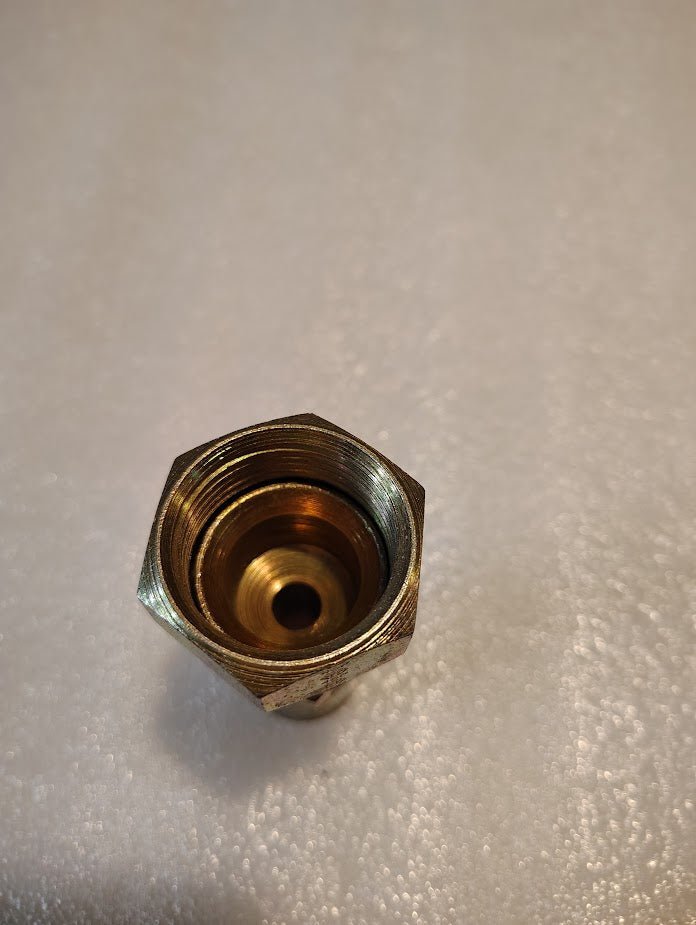

  • A close-up of the Weatherhead 08U-616 (CS09-8X16) 1/2 hose x 1 JIC female fitting highlights its hex nut design and showcases the durability and versatility of this interchangeable brass hydraulic hose fitting.

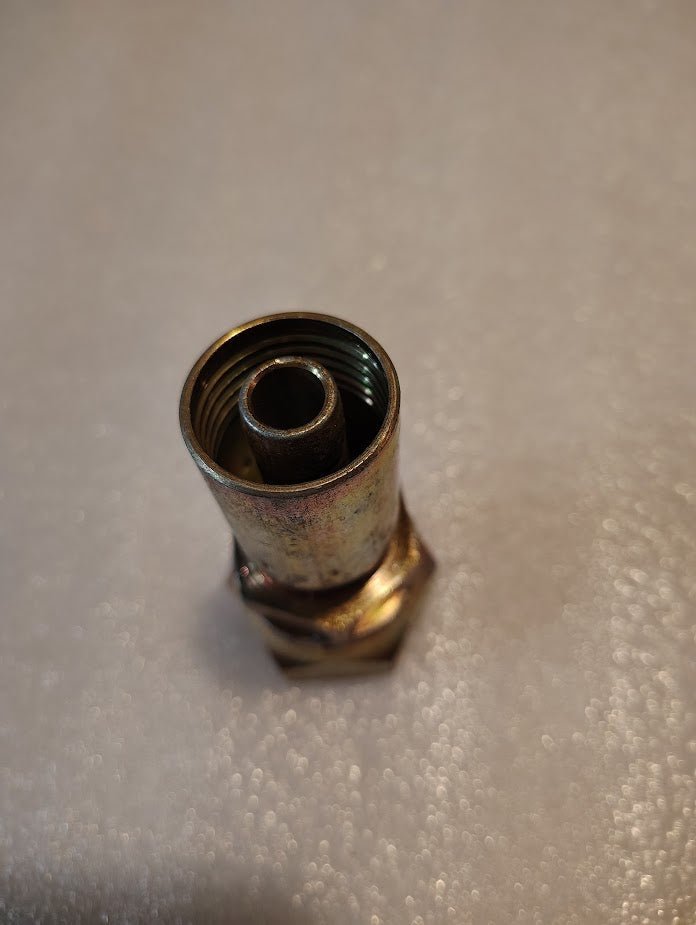

  • A close-up of the Weatherhead 08U-616 fitting (1/2 hose x 1 JIC female), shown upright on a textured white surface, perfect as an interchangeable brass hexagonal connector in multiple applications.

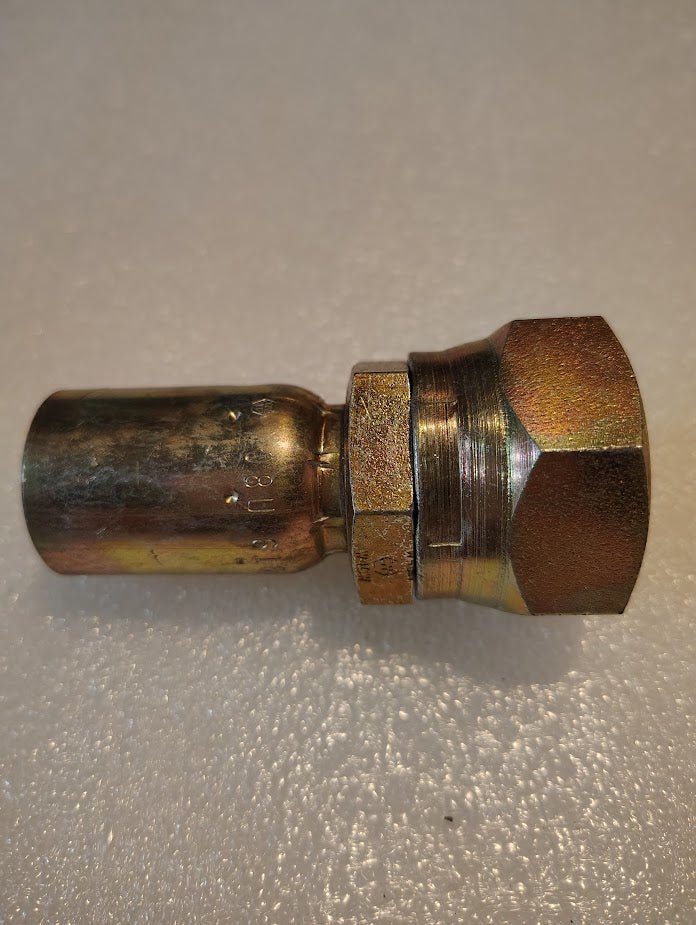

  • A close-up of the 08U-616 Weatherhead 1/2 Hose x 1 JIC Female Fitting (CS09-8X16) standing upright on a textured, light-colored surface.

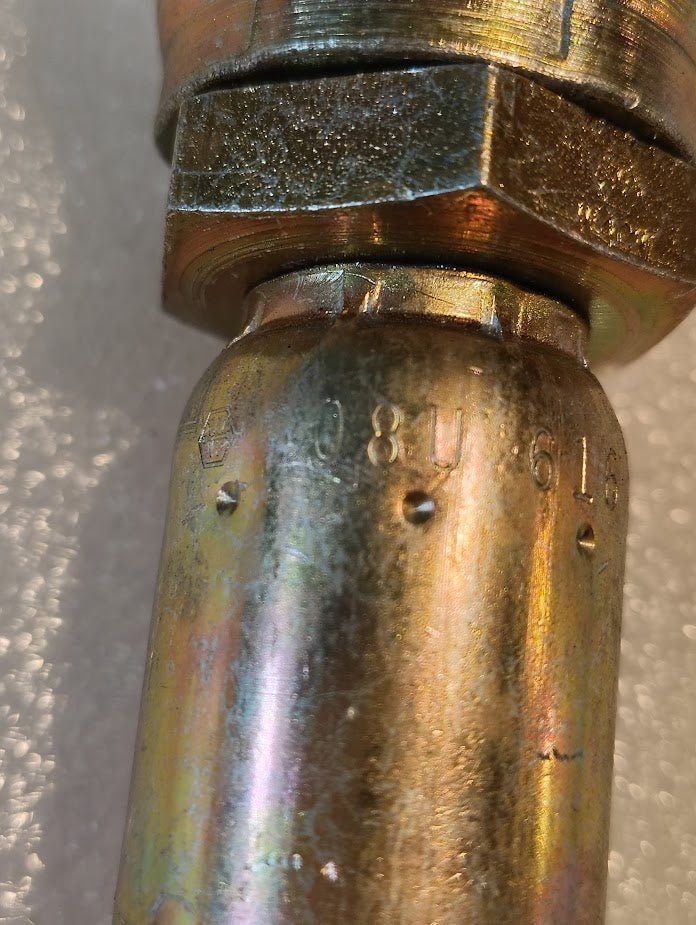

  • Close-up of a Weatherhead 08U-616 (CS09-8X16) 1/2 hose x 1 JIC female fitting, showing its metallic threaded joint and hexagonal nut with engraved markings, under bright reflective lighting.

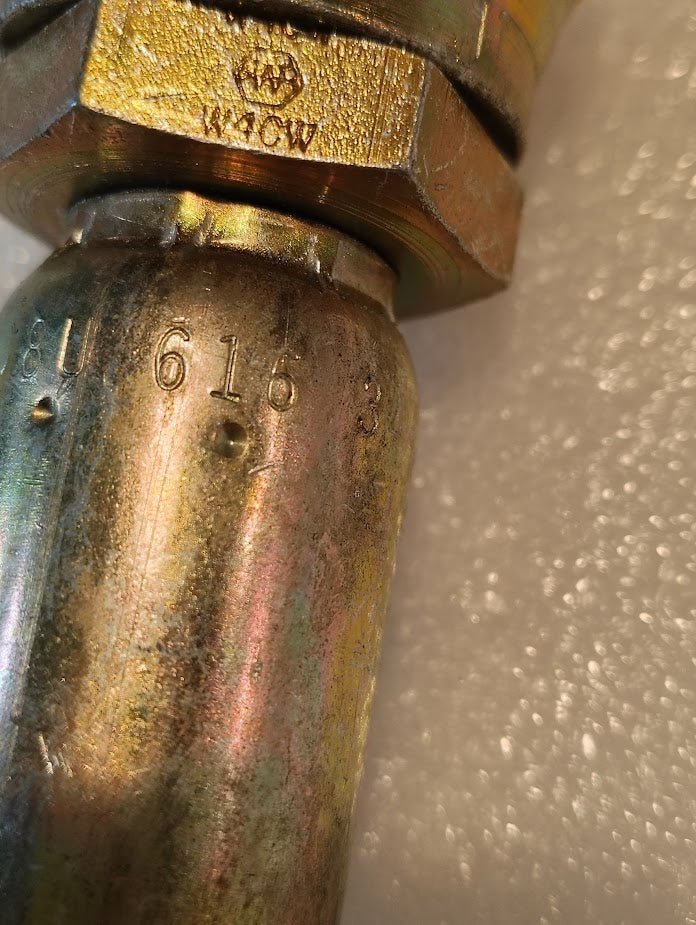

  • Close-up of a Weatherhead 08U-616 1/2 Hose x 1 JIC Female Fitting (CS09-8X16); its hexagonal nut shows a stamped logo and code, with engraved markings on metallic surface against a textured white background.
1 5

Weatherhead

08U-616 | 1/2" Hose x 1" JIC Swivel Fitting - Straight | CS09-8X16

08U-616 | 1/2" Hose x 1" JIC Swivel Fitting - Straight | CS09-8X16

$18.00 USD
$18.00 USD
Sale Sold out
Shipping calculated at checkout.

These are new Weatherhead 08U-616 fittings.
Compatible with 100R1, 100R2, 100R16 & 100R17 style hoses.


These fittings can be interchanged with the equivalent Couplamatic, Dayco, and Parker hydraulic hose fittings.

Hose Size: 1/2"
Fitting Size: 1"
Fitting Type: JIC
Fitting Style: Female Swivel Straight


Compatible with Couplamatic CS09-8X16
Compatible with Vari-Crimp 863V
Compatible with Parker 106HY-16-8
Compatible with Dayco HY08-16FJ
