  • The 08U-65D | Weatherhead 1/2 Hose x M22x1.5 DIN Female Fitting (CS44-8X15), a metal hydraulic fitting with a 90° bend and hex nut for 100R16 hoses, is shown on a light textured surface.
  • A close-up of the 08U-65D | Weatherhead 1/2 Hose x M22x1.5 DIN Female Fitting (CS44-8X15) shows its metal hexagonal nut and threaded pipe for hydraulic hose fittings, compatible with 100R16 hoses, against a light textured background.
  • Close-up of the 08U-65D | Weatherhead 1/2 Hose x M22x1.5 DIN Female Fitting (CS44-8X15), a metal hydraulic hose fitting with a 90-degree elbow, shown on a textured light surface.

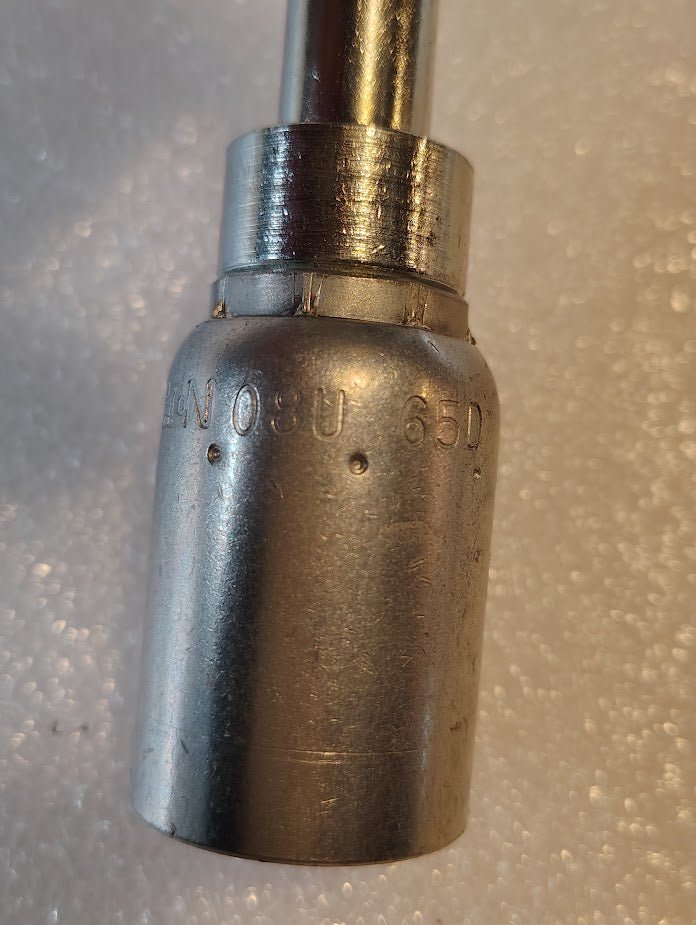

  • A close-up of the Weatherhead 08U-65D, a 1/2 hose x M22x1.5 DIN female fitting (CS44-8X15), used for hydraulic hose connections, shown against a textured white background.
1 4

Weatherhead

08U-65D | 1/2" Hose x M22x1.5 DIN Light Swivel Fitting - 90 bend | CS44-8X15

08U-65D | 1/2" Hose x M22x1.5 DIN Light Swivel Fitting - 90 bend | CS44-8X15

$18.00 USD
$18.00 USD
Sale Sold out
Shipping calculated at checkout.

These are new Weatherhead 08U-65D fittings.
Compatible with 100R1, 100R2, 100R16 & 100R17 style hoses.


These fittings can be interchanged with the equivalent Couplamatic, Dayco, and Parker hydraulic hose fittings.

Hose Size: 1/2"
Fitting Size: M22x1.5
Fitting Type: DIN Light
Fitting Style: Female Swivel 90 bend


Compatible with Couplamatic CS44-8X15
Compatible with Vari-Crimp 8D65V
Compatible with Parker 1C5HY-15-8
Compatible with Dayco HY08-15RU22A90T
