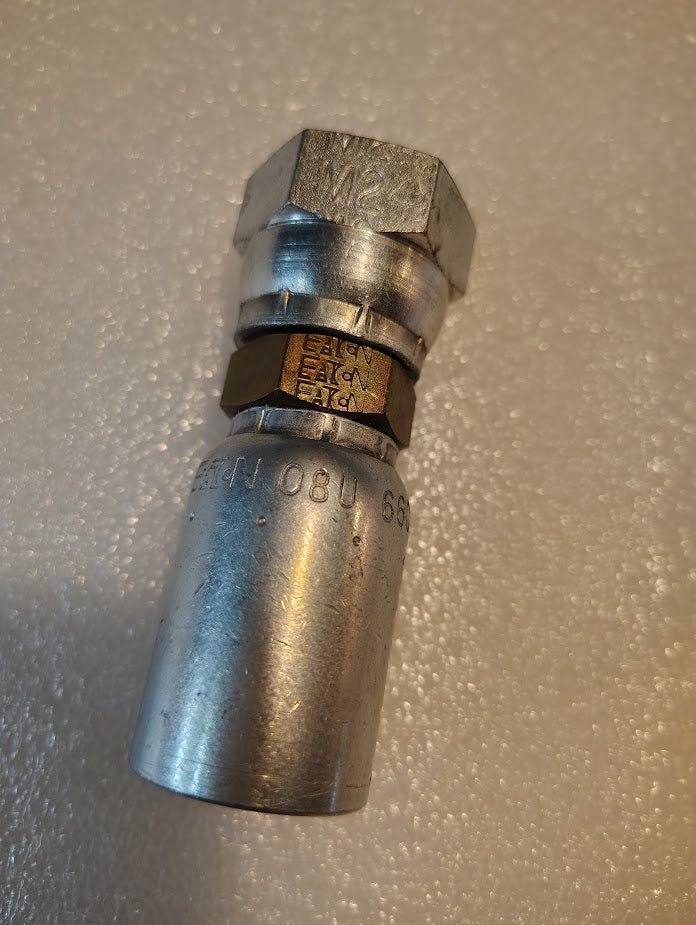

  • A close-up of the 08U-66C Weatherhead 1/2 Hose x M24x1.5 DIN Female Fitting (CS38-8X16) with engraved markings, resting on a textured white surface—ideal for 100R1 hoses and compatible with Weatherhead fittings.

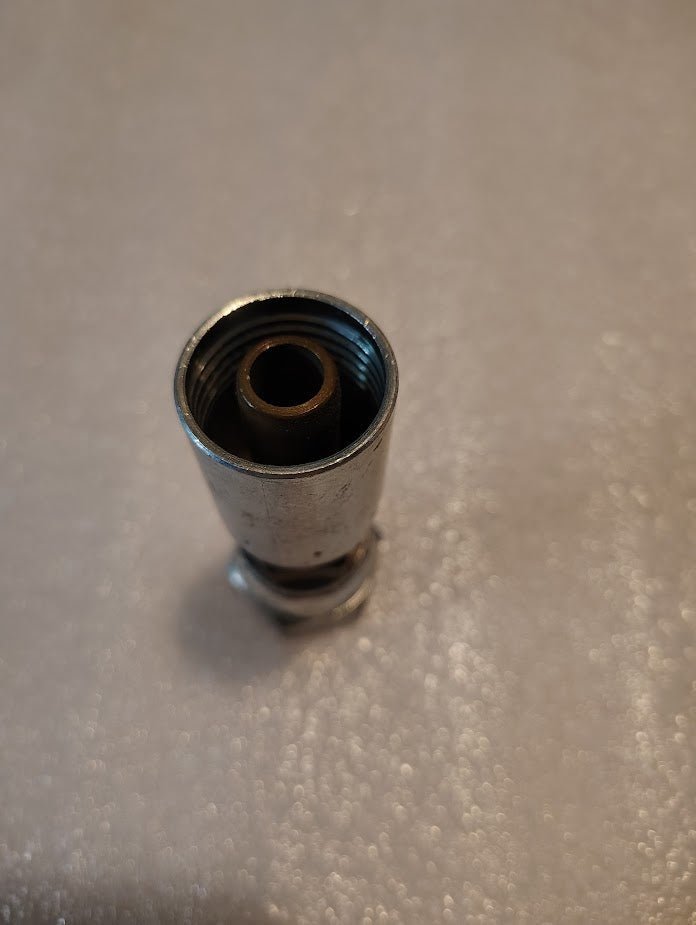

  • A close-up of the 08U-66C Weatherhead 1/2 Hose x M24x1.5 DIN Female Fitting (CS38-8X16) with a hex nut, shown on a textured, light surface.

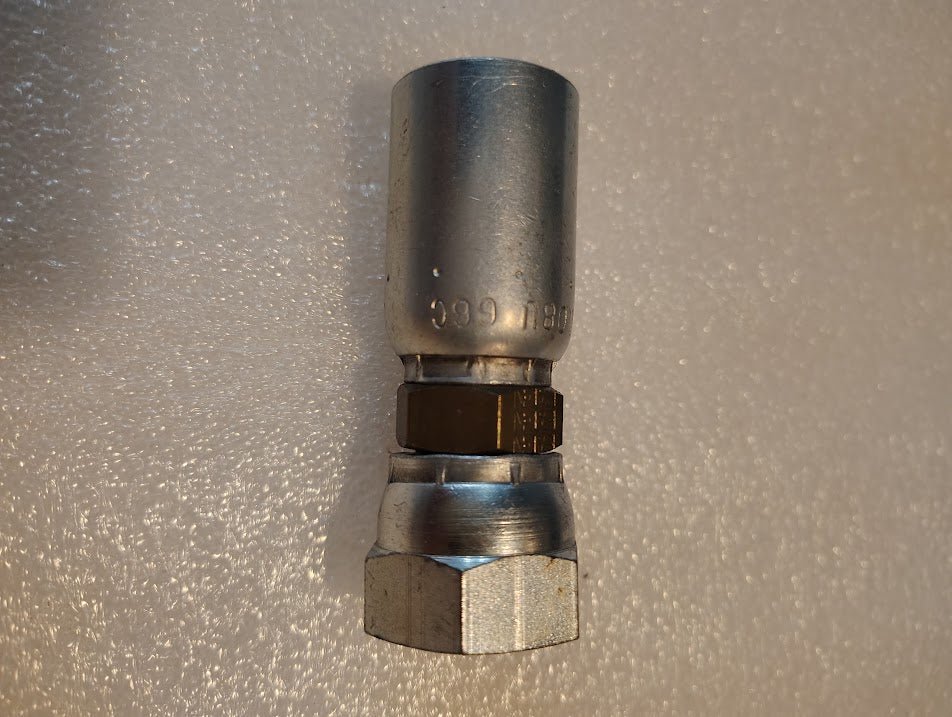

  • A close-up of the 08U-66C Weatherhead 1/2 Hose x M24x1.5 DIN Female Fitting (CS38-8X16) with brass insert, upright on a textured white surface—ideal for hydraulic or Weatherhead hose fittings.

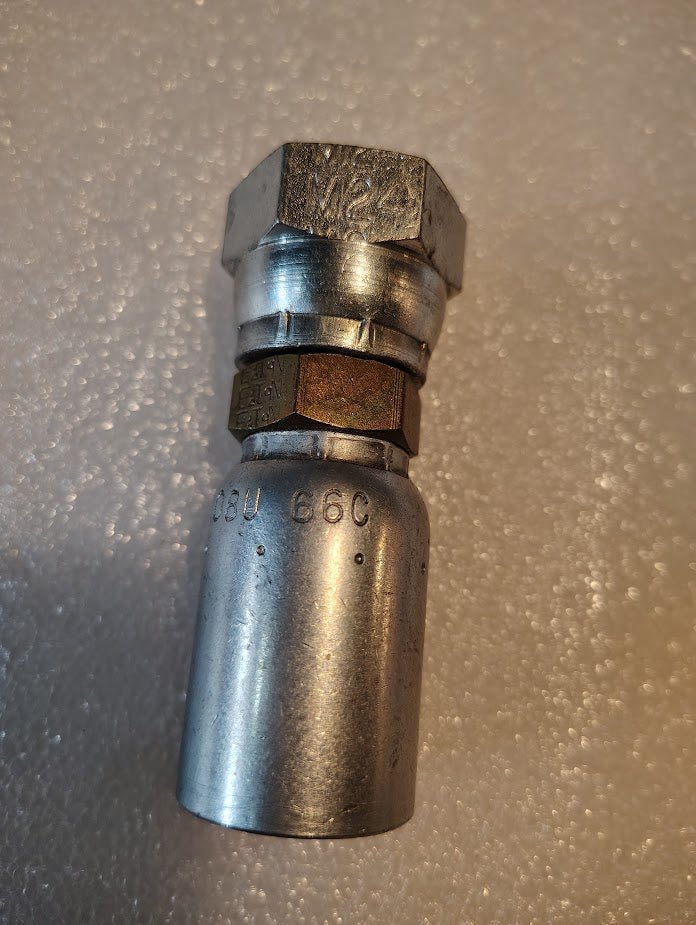

  • A close-up of the Weatherhead 08U-66C CS38-8X16, a 1/2 hose x M24x1.5 DIN female hydraulic fitting, shown upright on a textured light-colored surface.

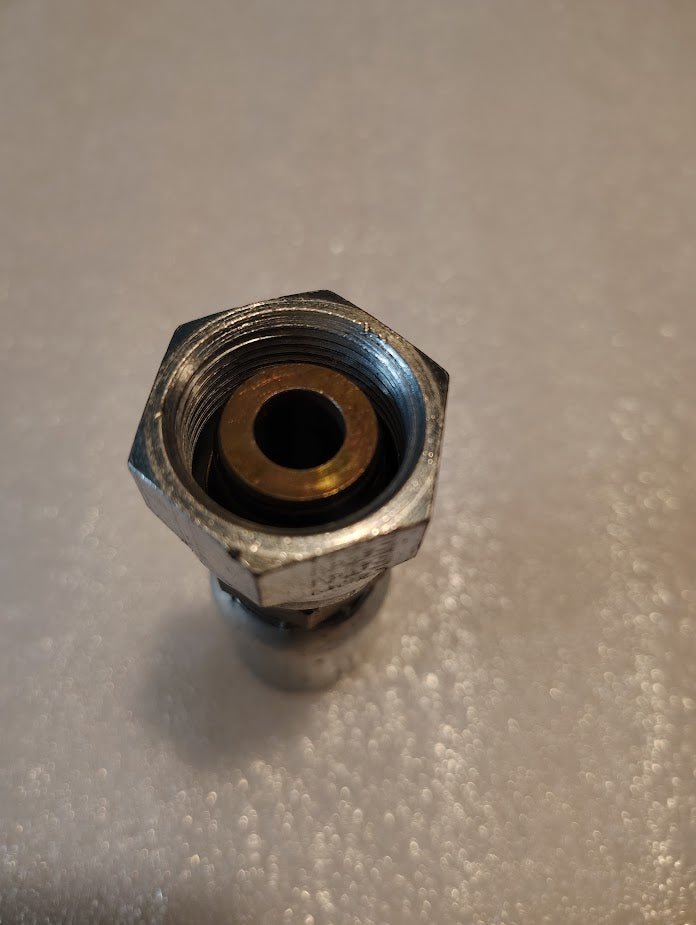

  • A close-up of the 08U-66C Weatherhead 1/2 Hose x M24x1.5 DIN Female Fitting (CS38-8X16), showing hexagonal and cylindrical sections with markings, rests on a textured white surface.
1 5

Weatherhead

08U-66C | 1/2" Hose x M24x1.5 DIN Heavy (Metric S) Swivel Fitting - Straight | CS38-8X16

08U-66C | 1/2" Hose x M24x1.5 DIN Heavy (Metric S) Swivel Fitting - Straight | CS38-8X16

$14.00 USD
$14.00 USD
Sale Sold out
Shipping calculated at checkout.

These are new Weatherhead 08U-66C fittings.
Compatible with 100R1, 100R2, 100R16 & 100R17 style hoses.


These fittings can be interchanged with the equivalent Couplamatic, Dayco, and Parker hydraulic hose fittings.

Hose Size: 1/2"
Fitting Size: M24x1.5
Fitting Type: DIN Heavy (Metric S)
Fitting Style: Female Swivel Straight


Compatible with Couplamatic CS38-8X16
Compatible with Vari-Crimp 8C66V
Compatible with Parker 1C9HY-16-8
Compatible with Dayco HY08-16RO24A
