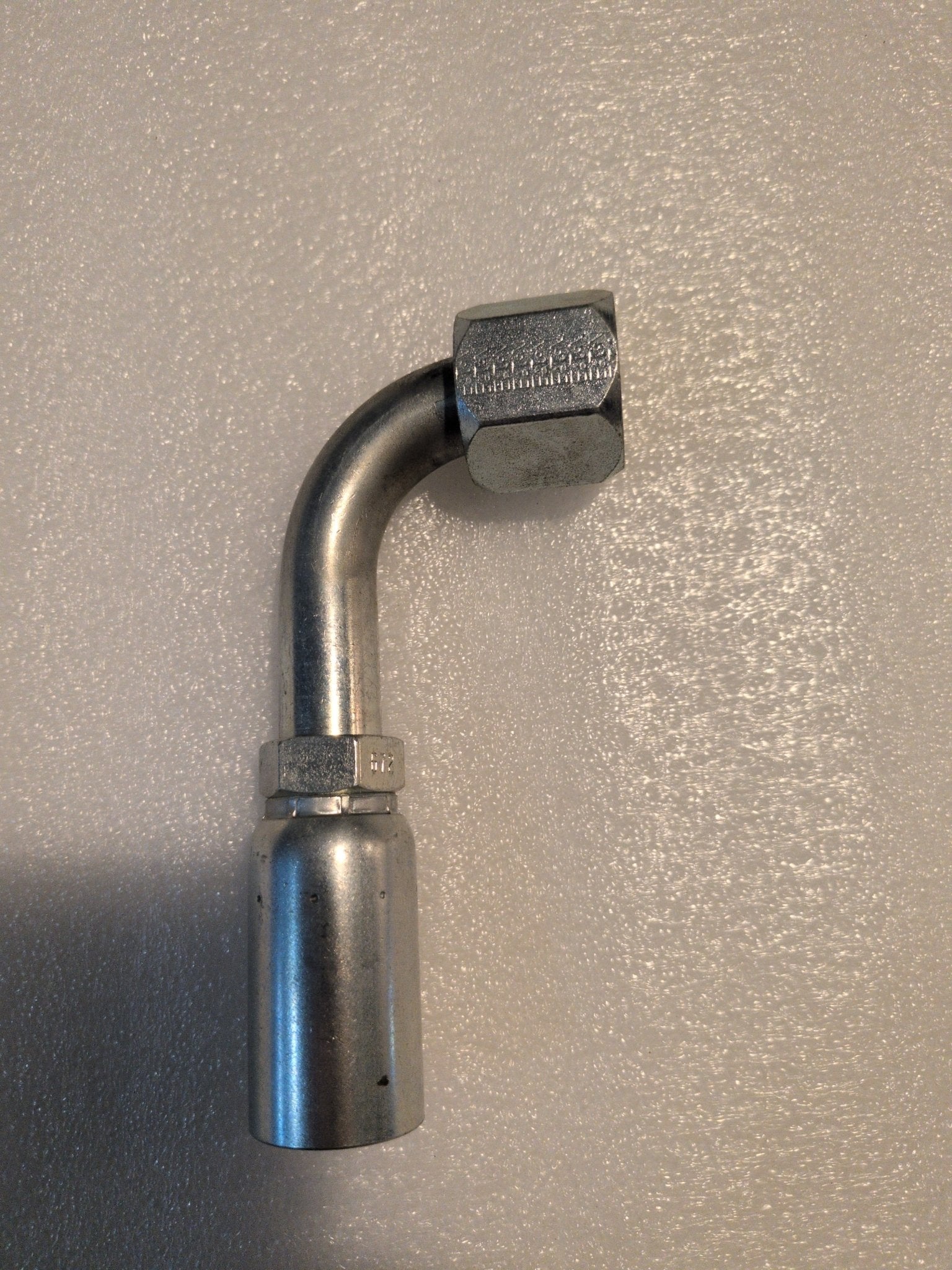

  • The Weatherhead 10U-672 (CS26-10X12) is a metal 5/8 hose x 3/4 JIC female fitting with a bent tube and hex nut, compatible with 100R1 hoses, shown on a textured light surface.
  • The 10U-672 Weatherhead 5/8 Hose x 3/4 JIC Female Fitting (CS26-10X12), designed for 100R1 hoses, features a metal 90-degree bend with a hex nut and cylindrical connector, shown on a textured light gray surface.
  • A close-up of the Weatherhead 10U-672 (CS26-10X12) 5/8 hose x 3/4 JIC female fitting with hex nut, for 100R1 hoses, shown on a textured white foam surface.
  • Close-up of a metallic Weatherhead 10U-672 fitting (5/8 Hose x 3/4 JIC Female, CS26-10X12) with engraved, partially visible text and a textured, slightly worn surface resting on a light-colored, rough background.
  • A close-up of the 10U-672 Weatherhead 5/8 Hose x 3/4 JIC Female Fitting (CS26-10X12), showing its hexagonal metallic form with engraved R and N, set in an industrial, gray-toned environment suggestive of hydraulic hose fittings.
1 5

Weatherhead

10U-672 | 5/8" Hose x 3/4" JIC/SAE Swivel Fitting - 90 bend | CS26-10X12

10U-672 | 5/8" Hose x 3/4" JIC/SAE Swivel Fitting - 90 bend | CS26-10X12

$19.00 USD
$19.00 USD
Sale Sold out
Shipping calculated at checkout.

These are new Weatherhead 10U-672 fittings.
Compatible with 100R1, 100R2, 100R16 & 100R17 style hoses.


These fittings can be interchanged with the equivalent Couplamatic, Dayco, and Parker hydraulic hose fittings.

Hose Size: 5/8"
Fitting Size: 3/4"
Fitting Type: JIC/SAE
Fitting Style: Female Swivel 90 bend


Compatible with Couplamatic CS26-10X12
Compatible with Vari-Crimp 1066V
Compatible with Parker 139HY-12-10
Compatible with Dayco HY10-12FJ90T
