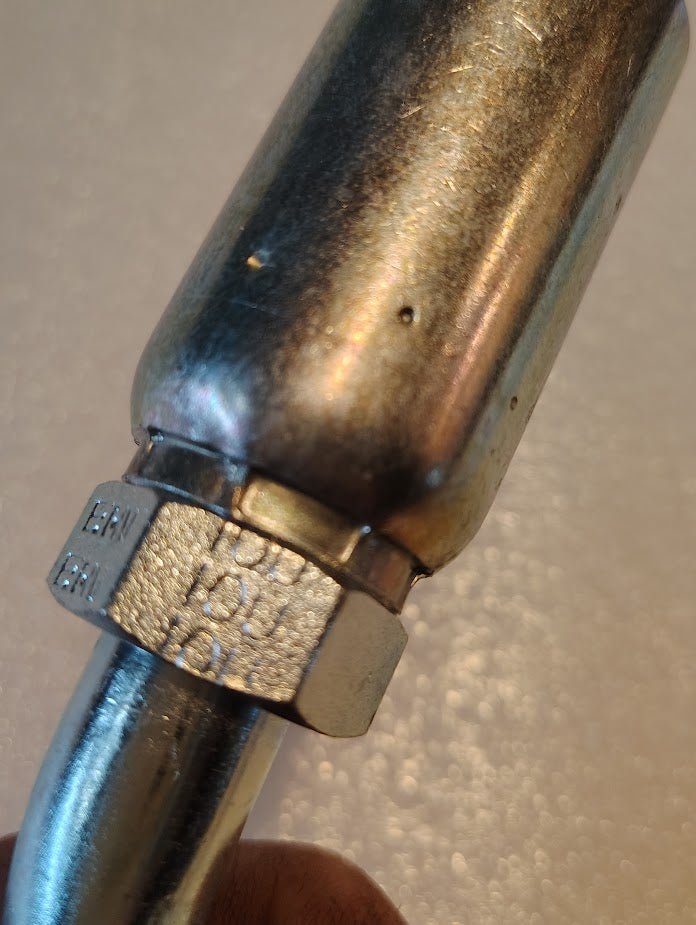

  • The Weatherhead 10U-A70 (CS33-10X10) is a 5/8 hose x 5/8 ORF female metal hydraulic fitting with a 90-degree bend, threaded nut, and hose barb on one end and a flange fitting on the other, shown on a textured light-colored surface.

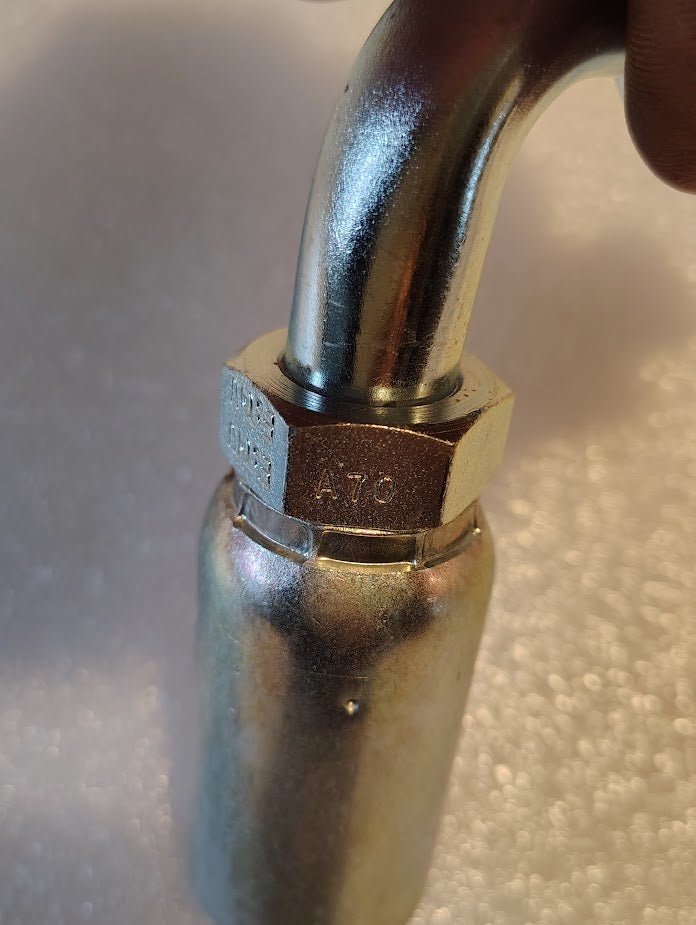

  • Close-up of a Weatherhead 10U-A70 fitting (5/8 hose x 5/8 ORF female, CS33-10X10), metal and threaded, compatible with 100R2 hoses and Weatherhead fittings, on a textured white surface.

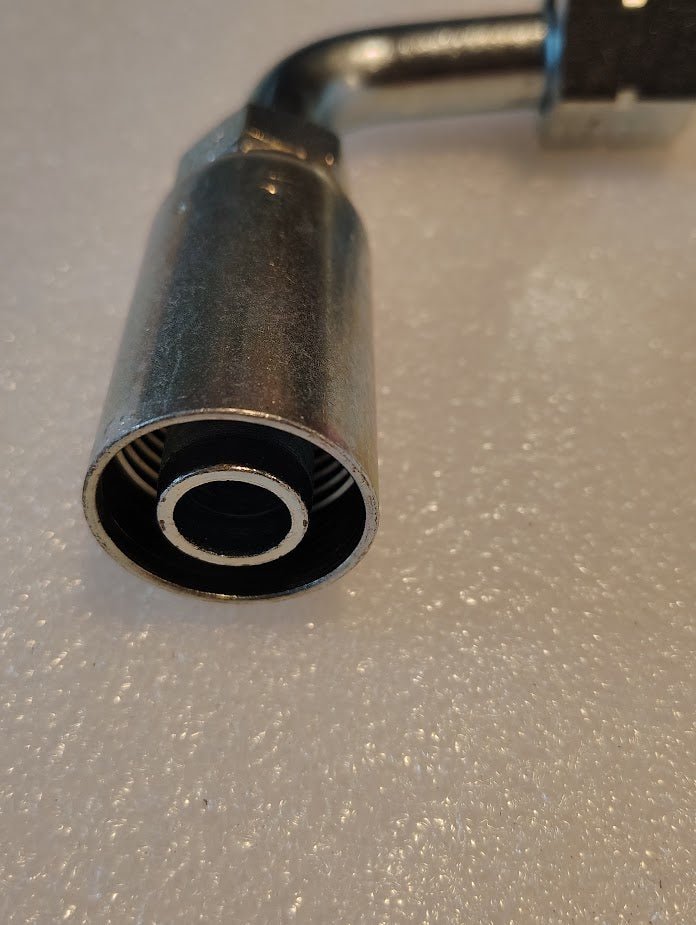

  • Close-up of a 10U-A70 Weatherhead 5/8 Hose x 5/8 ORF Female Fitting (CS33-10X10) on a textured white surface, showing the circular opening and interior details.

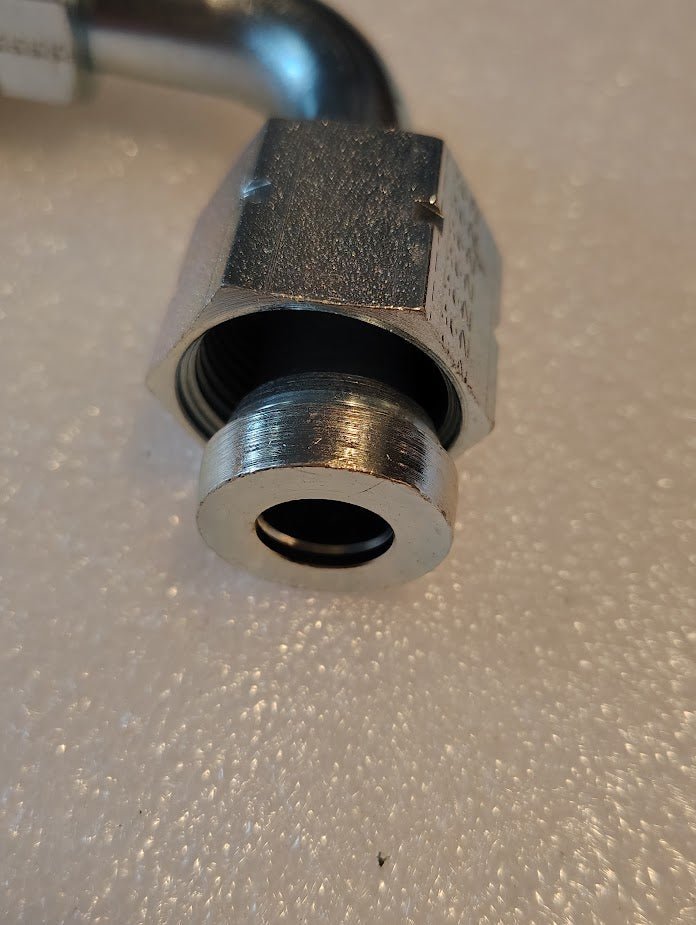

  • A close-up of the Weatherhead 10U-A70 5/8 Hose x 5/8 ORF Female Fitting (CS33-10X10) showcases its metallic, hexagonal nut design—ideal for hydraulic hose or 100R2 hoses—contrasting with a softly blurred background.

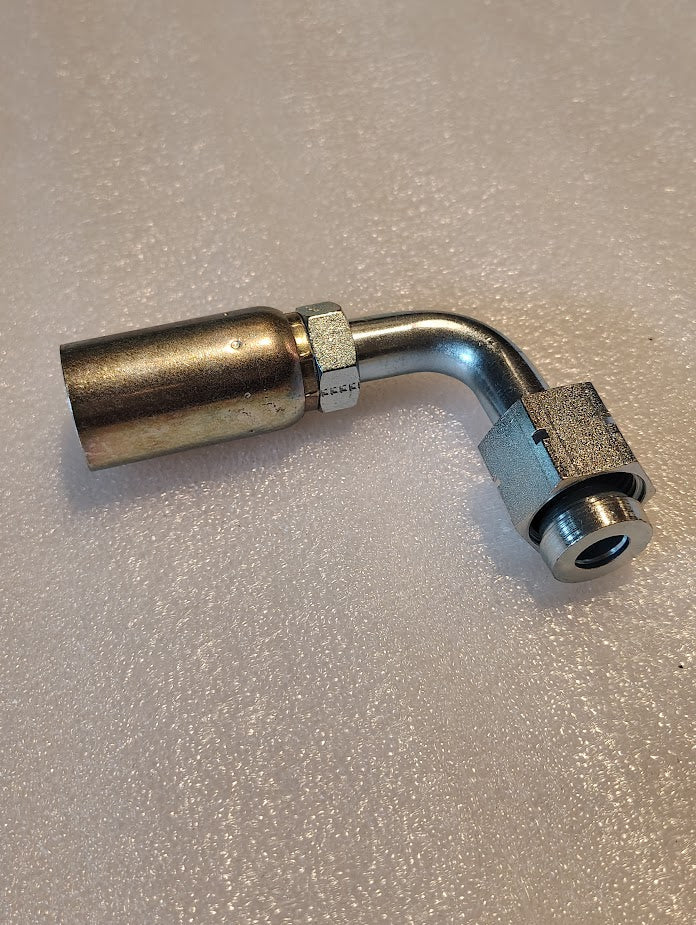

  • A close-up of a Weatherhead 10U-A70 (5/8 Hose x 5/8 ORF Female Fitting, CS33-10X10) with hex nut, attached to a curved pipe on textured white surface—ideal for hydraulic hose assemblies with 100R2 hoses.
1 5

Weatherhead

10U-A70 | 5/8" Hose x 5/8" ORFS Swivel Fitting - 90 Long bend | CS33-10X10

10U-A70 | 5/8" Hose x 5/8" ORFS Swivel Fitting - 90 Long bend | CS33-10X10

$19.00 USD
$19.00 USD
Sale Sold out
Shipping calculated at checkout.

These are new Weatherhead 10U-A70 fittings.
Compatible with 100R1, 100R2, 100R16 & 100R17 style hoses.


These fittings can be interchanged with the equivalent Couplamatic, Dayco, and Parker hydraulic hose fittings.

Hose Size: 5/8"
Fitting Size: 5/8"
Fitting Type: ORFS
Fitting Style: Female Swivel 90 Long bend


Compatible with Couplamatic CS33-10X10
Compatible with Vari-Crimp 10A70V
Compatible with Parker 1J1HY-10-10
Compatible with Dayco HY10-10OF90TL
