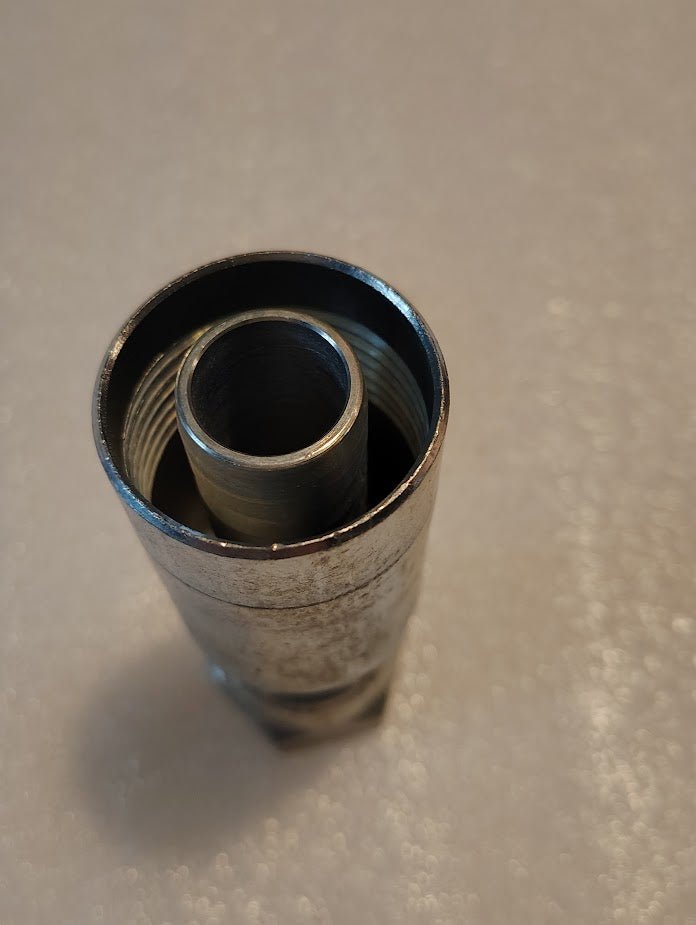

  • A close-up of a Weatherhead 12U-12L 3/4 Hose x 3/4 JIS Female Fitting (CS40-12X12), showing its metal, cylindrical body with inner tube and threaded outer edge—ideal for hydraulic hose compatible fittings.
  • Close-up of a Weatherhead 12U-12L CS40-12X12, a 3/4 Hose x 3/4 JIS Female metallic pipe fitting with engraved markings, set against a textured white background.

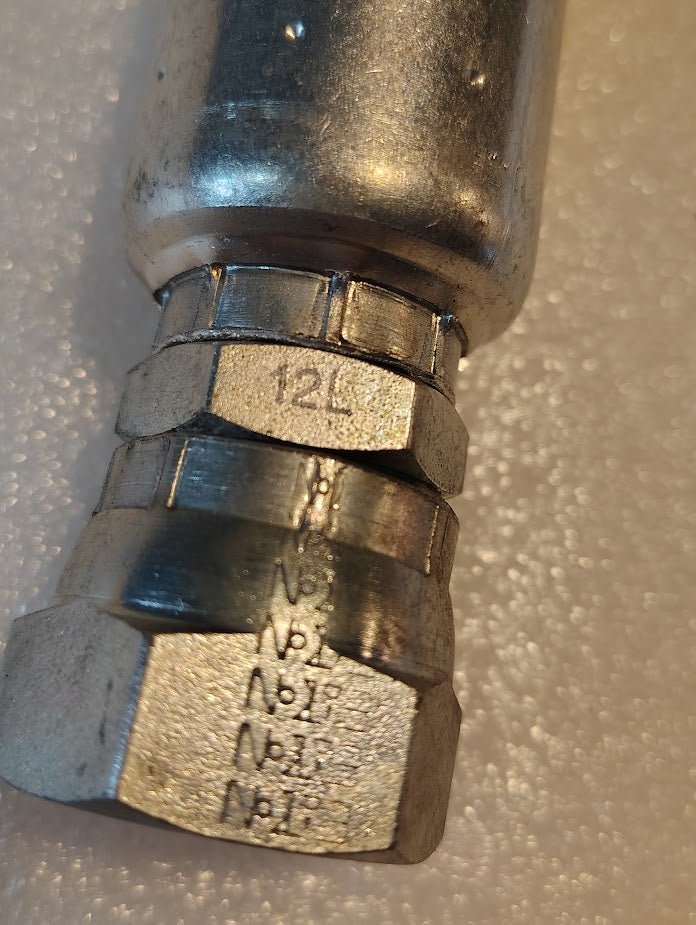

  • Close-up of the Weatherhead 12U-12L (CS40-12X12) 3/4 hose x 3/4 JIS female metal hydraulic fitting, with engraved numbers, on a textured, light surface—ideal for compatible fittings and hydraulic hose setups.
1 5

Weatherhead

12U-12L | 3/4" Hose x 3/4" JIS Swivel Fitting - Straight | CS40-12X12

12U-12L | 3/4" Hose x 3/4" JIS Swivel Fitting - Straight | CS40-12X12

$19.00 USD
$19.00 USD
Sale Sold out
Shipping calculated at checkout.

These are new Weatherhead 12U-12L fittings.
Compatible with 100R1, 100R2, 100R16 & 100R17 style hoses.


These fittings can be interchanged with the equivalent Couplamatic, Dayco, and Parker hydraulic hose fittings.

Hose Size: 3/4"
Fitting Size: 3/4"
Fitting Type: JIS
Fitting Style: Female Swivel Straight


Compatible with Couplamatic CS40-12X12
Compatible with Vari-Crimp 12L12V
Compatible with Parker 1FUHY-12-12-SM
Compatible with Dayco HY12-12MJPF
