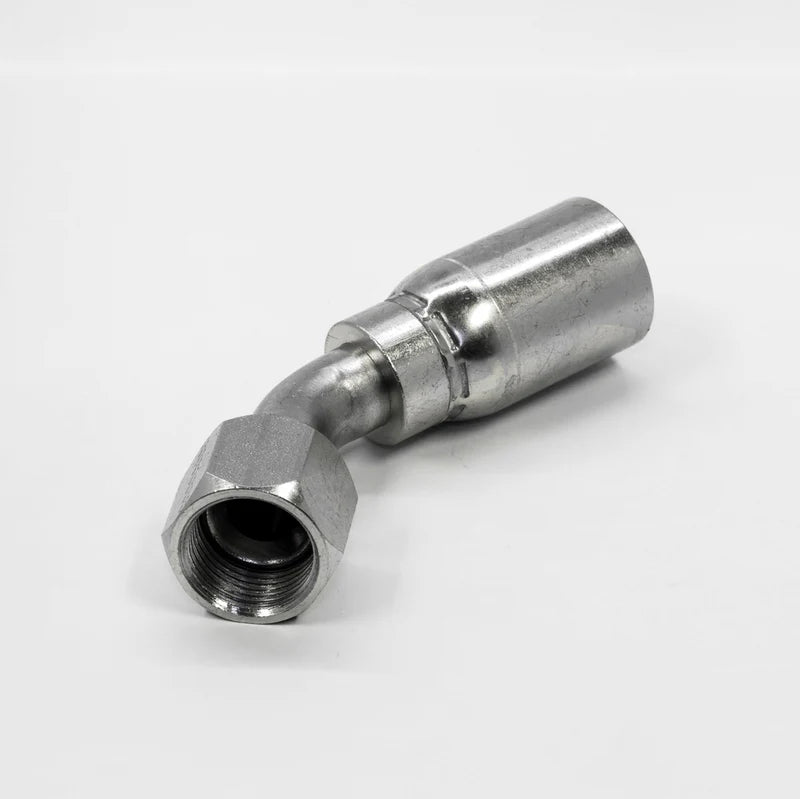

  • The Weatherhead 12U692 is a 3/4 hose fitting with a JIC female end and a 45-degree elbow design. It has a hexagonal nut for attachment, a shiny finish, and is displayed diagonally on a white background.
1 1

Weatherhead

12U-692 | 3/4" Hose x 3/4" JIC/SAE Swivel Fitting - 45 bend | CS25-12x12

12U-692 | 3/4" Hose x 3/4" JIC/SAE Swivel Fitting - 45 bend | CS25-12x12

$20.00 USD
$20.00 USD
Sale Sold out
Shipping calculated at checkout.

These are new Weatherhead 12U-692 fittings.
Compatible with 100R1, 100R2, 100R16 & 100R17 style hoses.


These fittings can be interchanged with the equivalent Couplamatic, Dayco, and Parker hydraulic hose fittings.

Hose Size: 3/4"
Fitting Size: 3/4"
Fitting Type: JIC/SAE
Fitting Style: Female Swivel 45 bend


Compatible with Couplamatic CS25-12X12
Compatible with Vari-Crimp 12612V
Compatible with Parker 137HY-12-12
Compatible with Dayco HY12-12FJ45T
