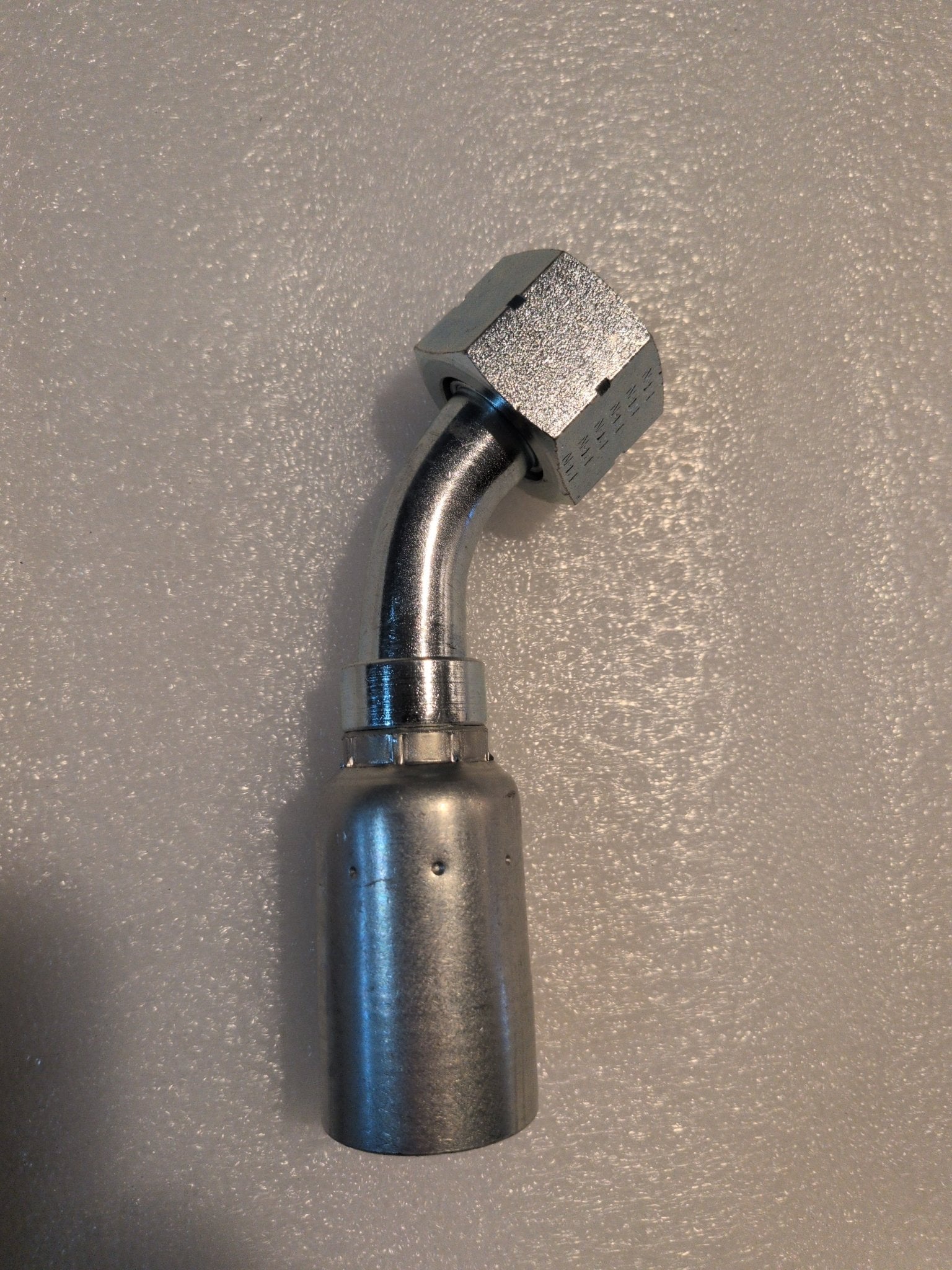

  • A Weatherhead 12U-L72 hydraulic hose fitting (3/4 Hose x 3/4 ORF Female, CS31-12X12) with a hexagonal nut and bent tube rests on a textured, light-colored surface.

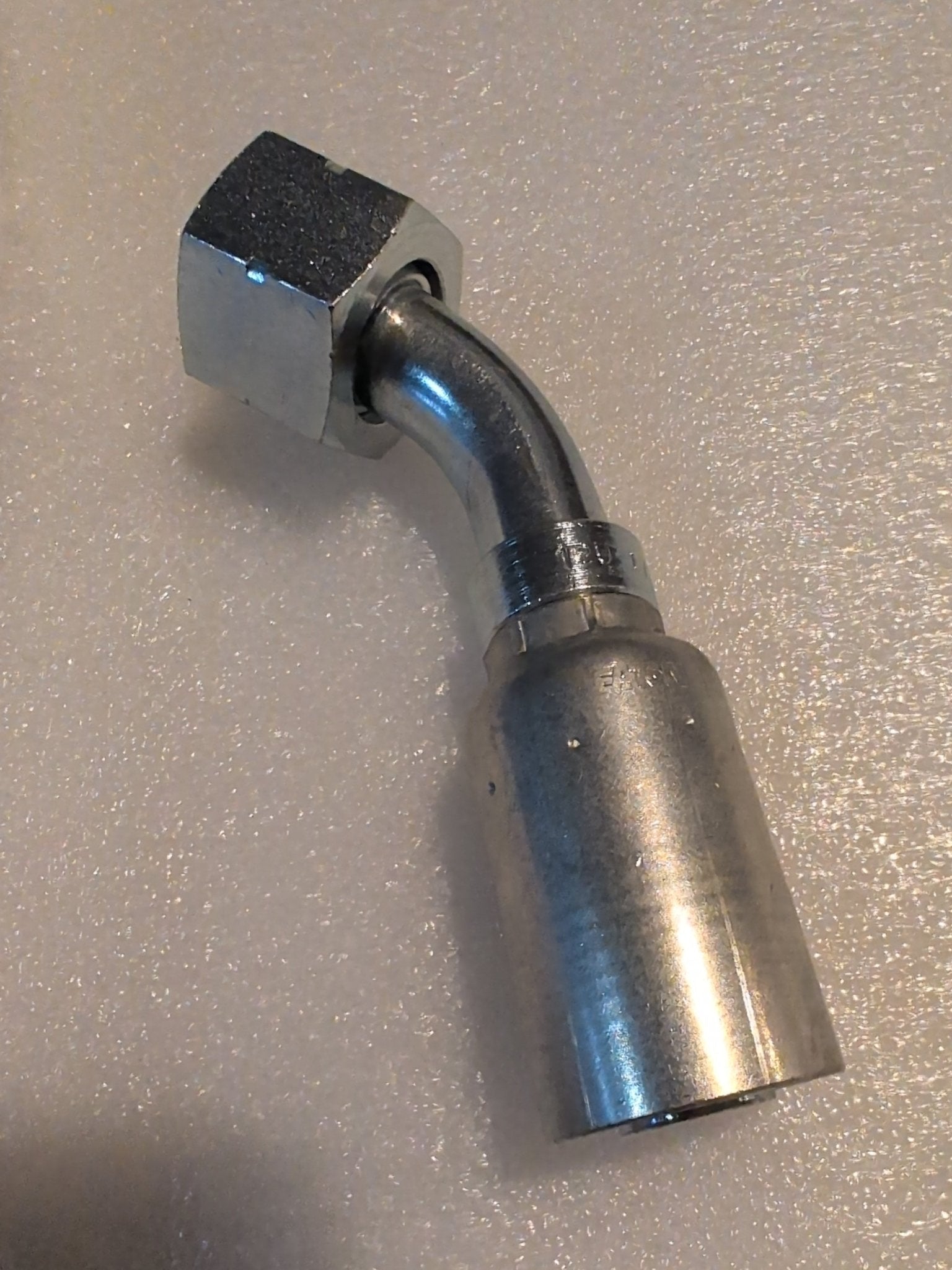

  • A Weatherhead 12U-L72 3/4 Hose x 3/4 ORF Female Fitting (CS31-12X12) with a curved metal tube and large hex nut, 100R1 compatible, is shown on a textured light gray surface.

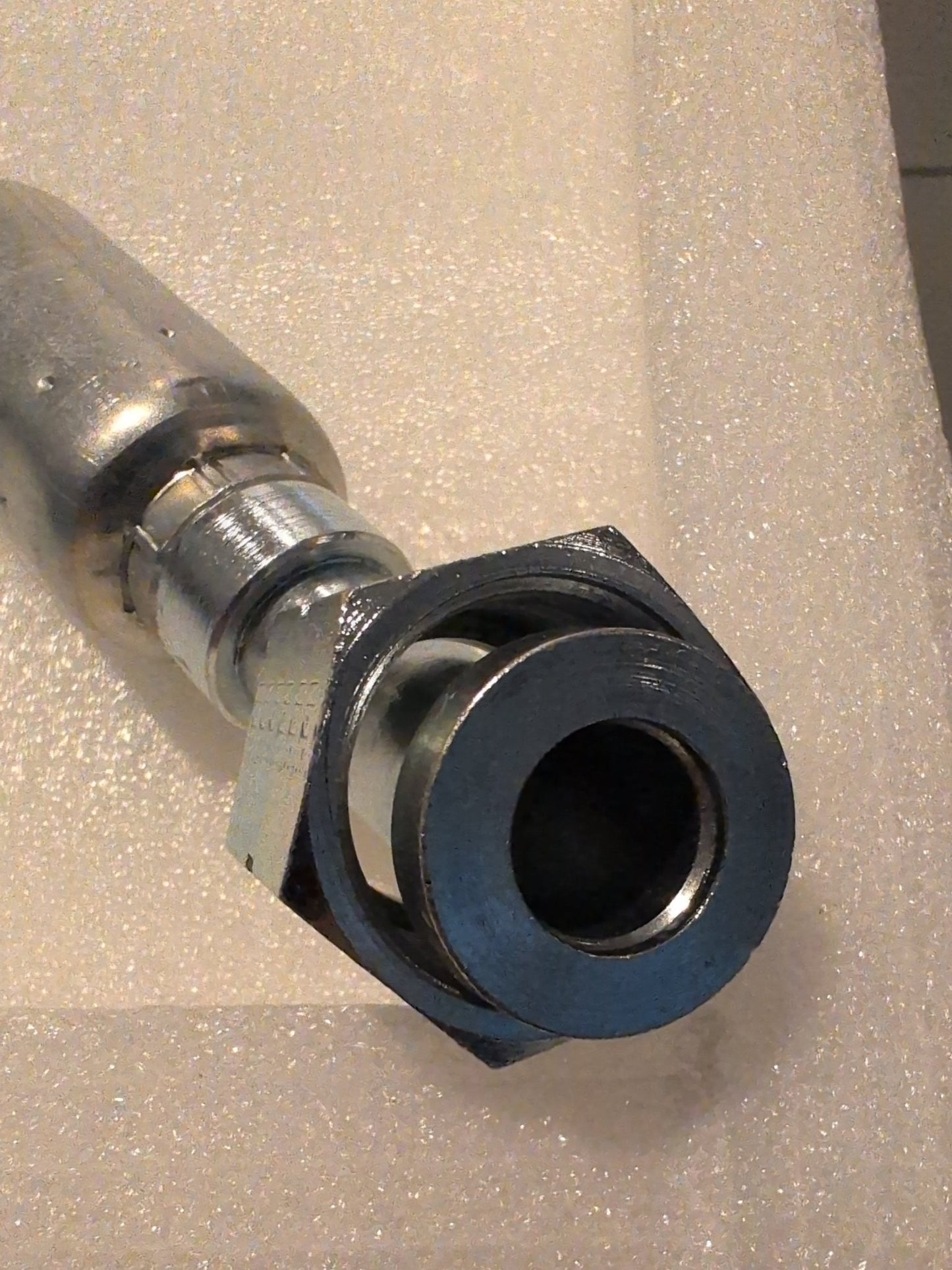

  • Close-up of a Weatherhead 12U-L72 (CS31-12X12) 3/4 Hose x 3/4 ORF female fitting with a hex nut and visible threading, compatible with 100R1, shown on textured white foam.

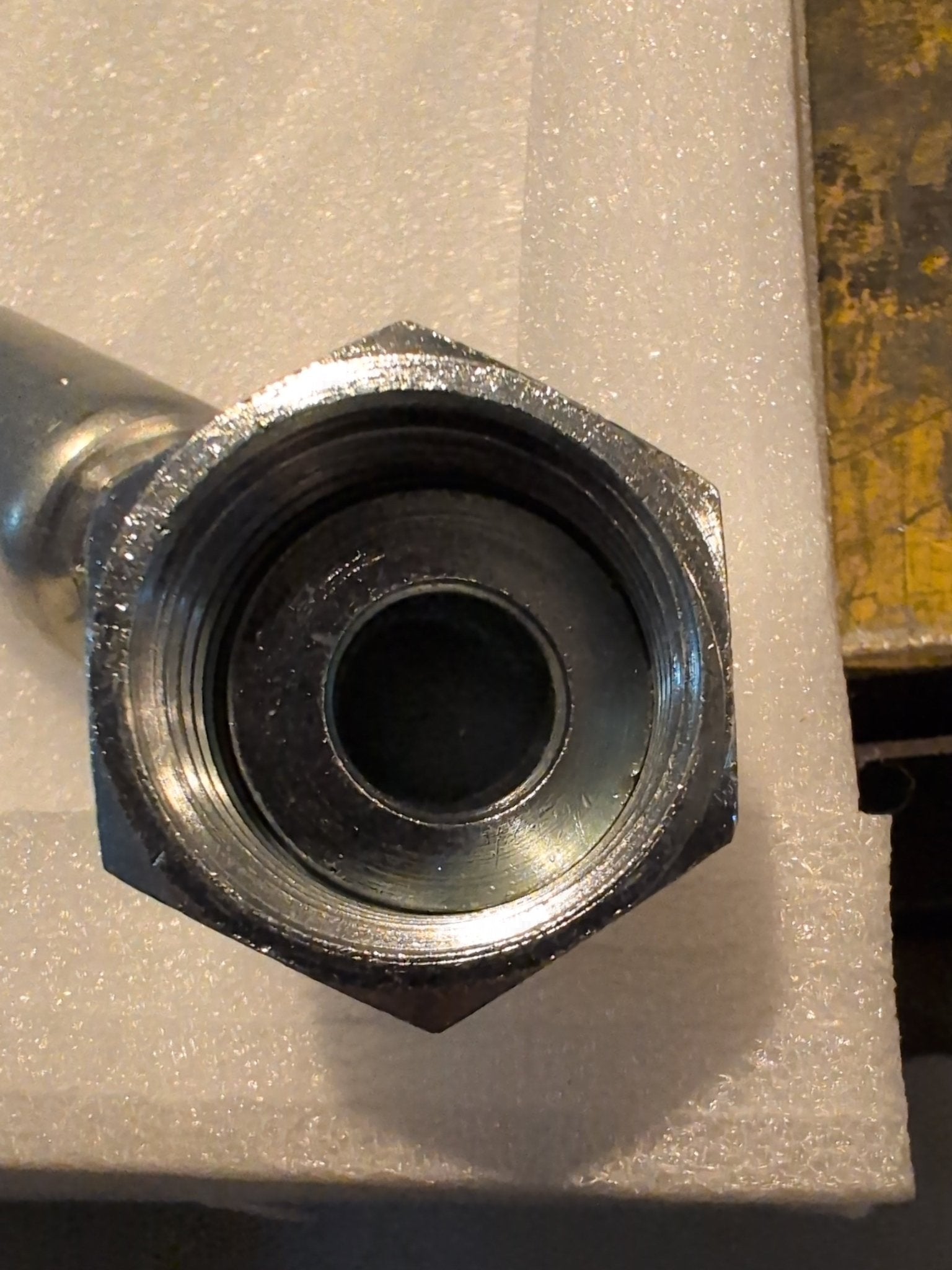

  • Close-up of a Weatherhead 12U-L72 fitting (3/4 Hose x 3/4 ORF Female, CS31-12X12), 100R1 compatible for hydraulic hose systems, shown on white foam with visible threaded interior.

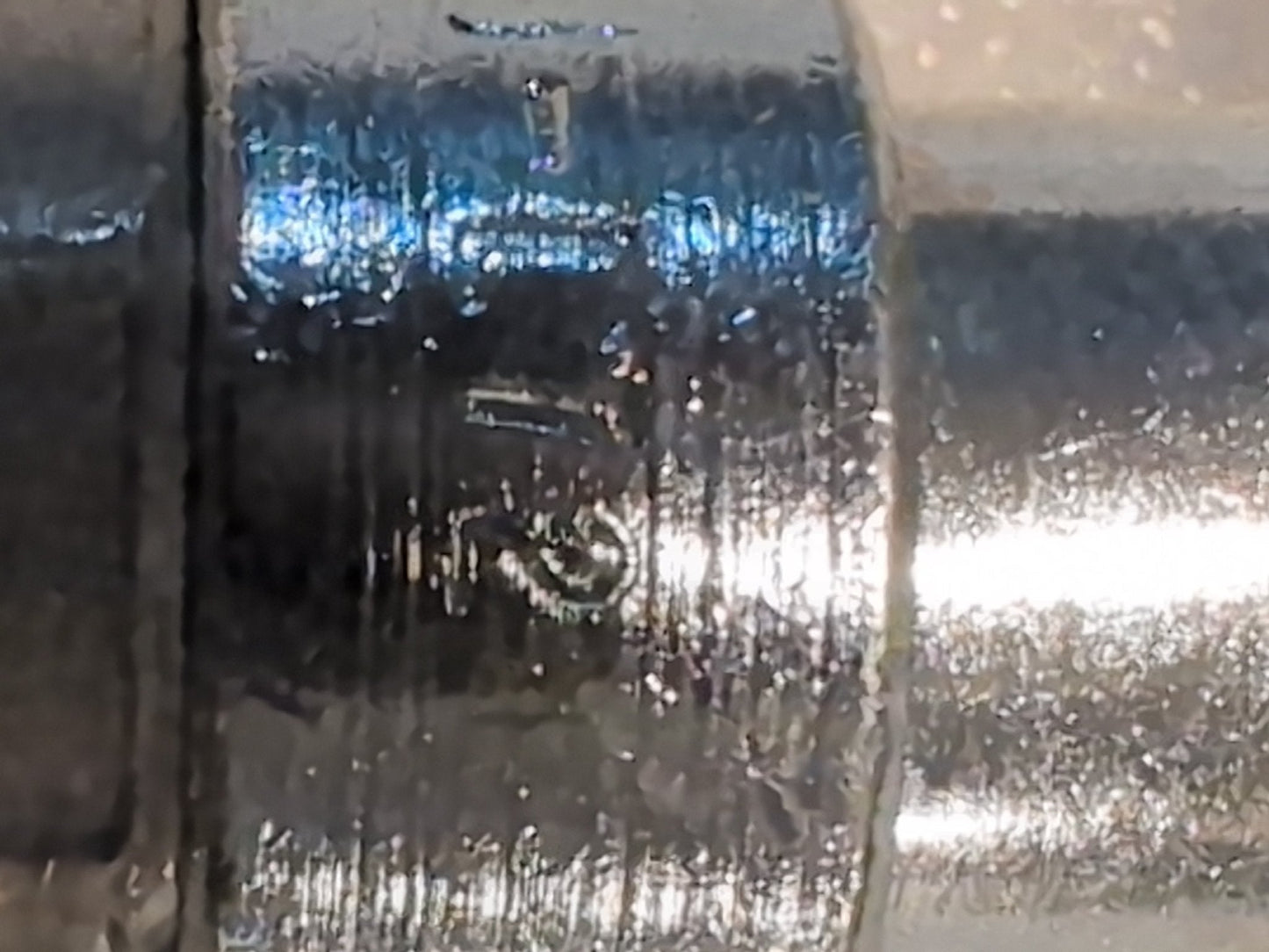

  • Close-up of a metallic 12U-L72 (Weatherhead 3/4 Hose x 3/4 ORF Female Fitting, CS31-12X12) showing shiny surface and engraved markings, indicating compatibility with Weatherhead fittings. Focus is on the engraved area.

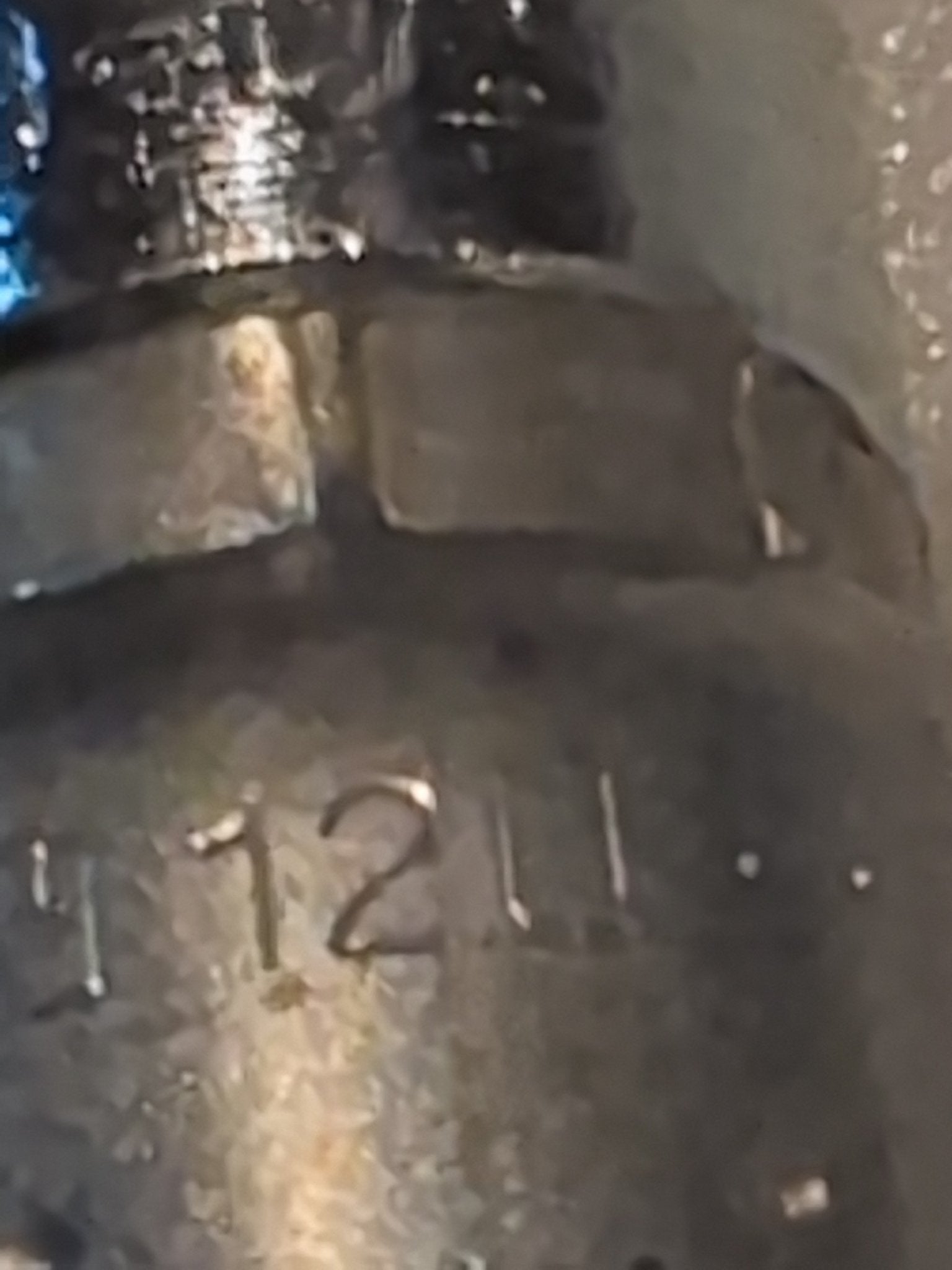

  • Close-up of a shiny metallic 12U-L72 Weatherhead 3/4 Hose x 3/4 ORF Female Fitting (CS31-12X12) with engraved markings, including the number 5; its reflective surface suggests hydraulic hose compatibility.
1 6

Weatherhead

12U-L72 | 3/4" Hose x 3/4" ORFS Swivel Fitting - 45 bend | CS31-12X12

12U-L72 | 3/4" Hose x 3/4" ORFS Swivel Fitting - 45 bend | CS31-12X12

$25.00 USD
$25.00 USD
Sale Sold out
Shipping calculated at checkout.

These are new Weatherhead 12U-L72 fittings.
Compatible with 100R1, 100R2, 100R16 & 100R17 style hoses.


These fittings can be interchanged with the equivalent Couplamatic, Dayco, and Parker hydraulic hose fittings.

Hose Size: 3/4"
Fitting Size: 3/4"
Fitting Type: ORFS
Fitting Style: Female Swivel 45 bend


Compatible with Couplamatic CS31-12X12
Compatible with Vari-Crimp 12L72V
Compatible with Parker 1J7HY-12-12
Compatible with Dayco HY12-12OF45T
