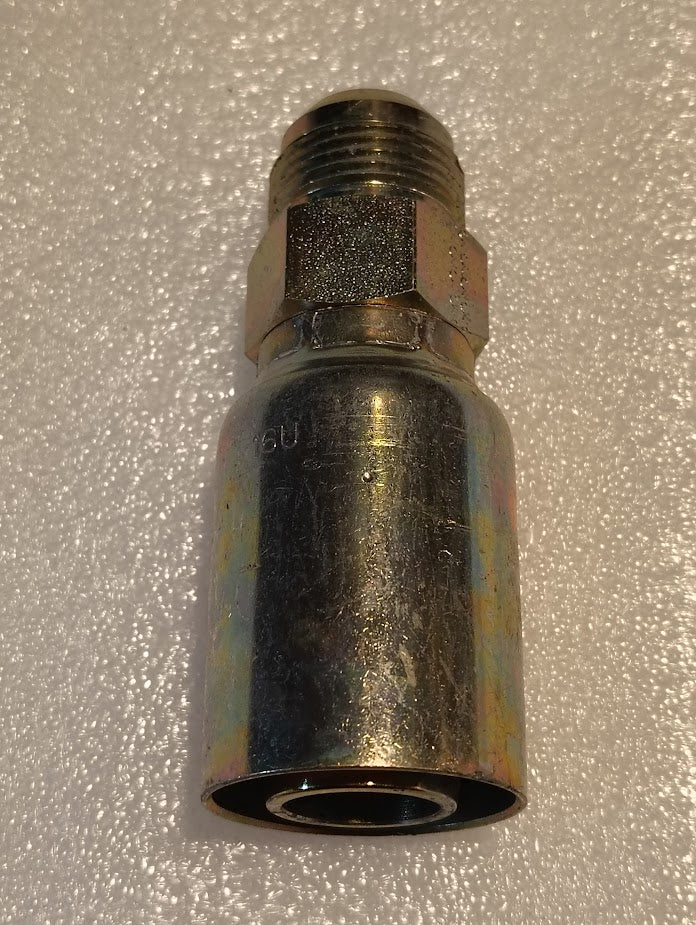

  • A close-up of the 16U-514 | Weatherhead 1 Hose x 7/8 SAE Male Fitting (CS08-16X14) with a threaded end and hexagonal nut, shown on a textured, light-colored surface.

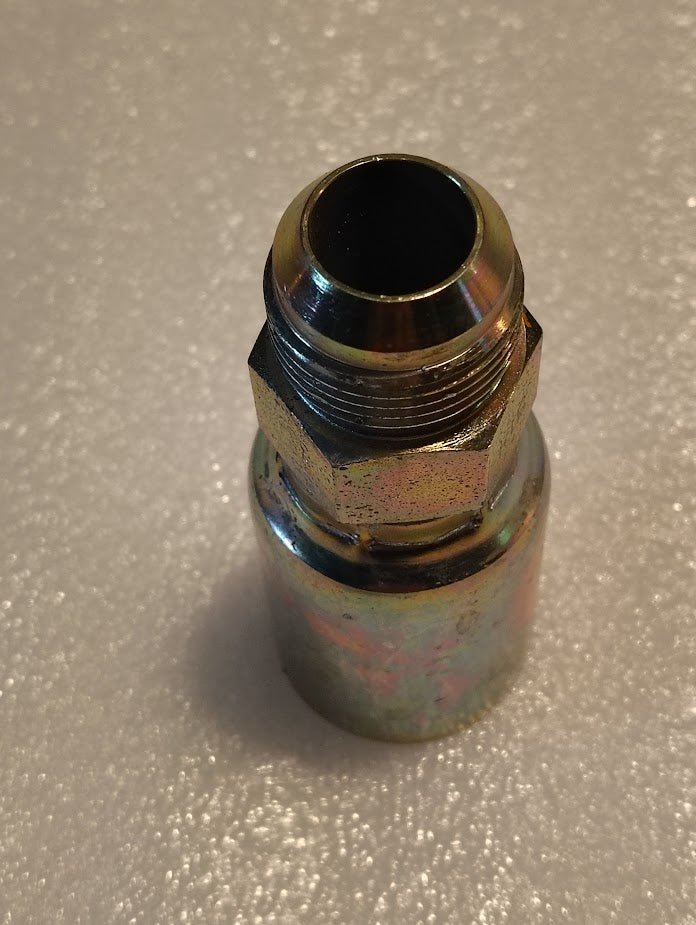

  • A close-up photo of the 16U-514 Weatherhead 1 Hose x 7/8 SAE Male Fitting (CS08-16X14) with a hexagonal nut and threaded end on a textured white surface, perfect for highlighting compatible Weatherhead fittings.

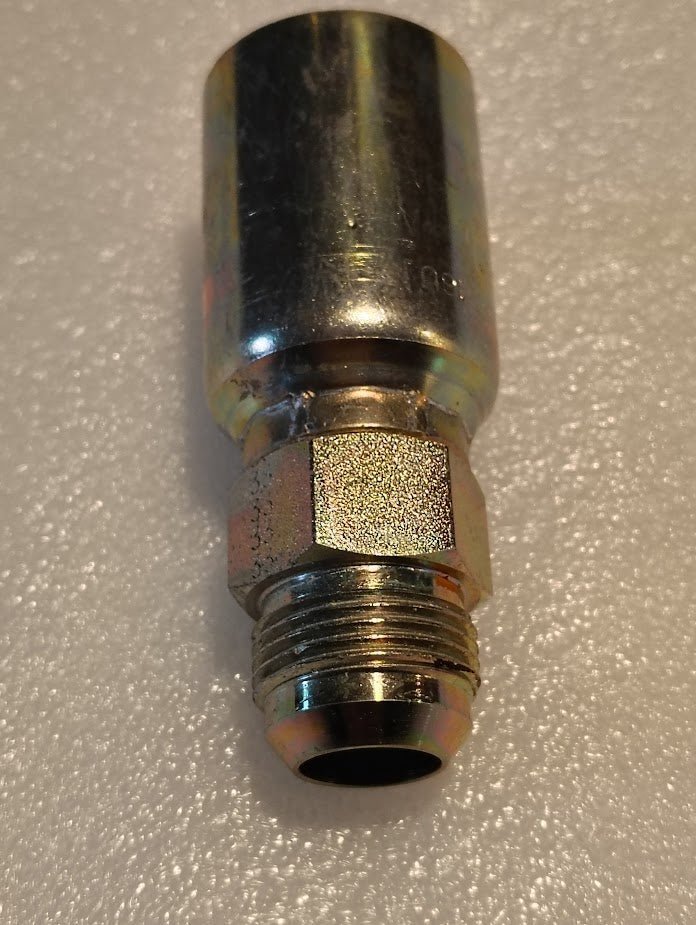

  • A close-up photo of the Weatherhead 16U-514 fitting, a 1 hose x 7/8 SAE male connector (CS08-16X14), with a threaded hex section and tapered end, shown on a textured, light surface.

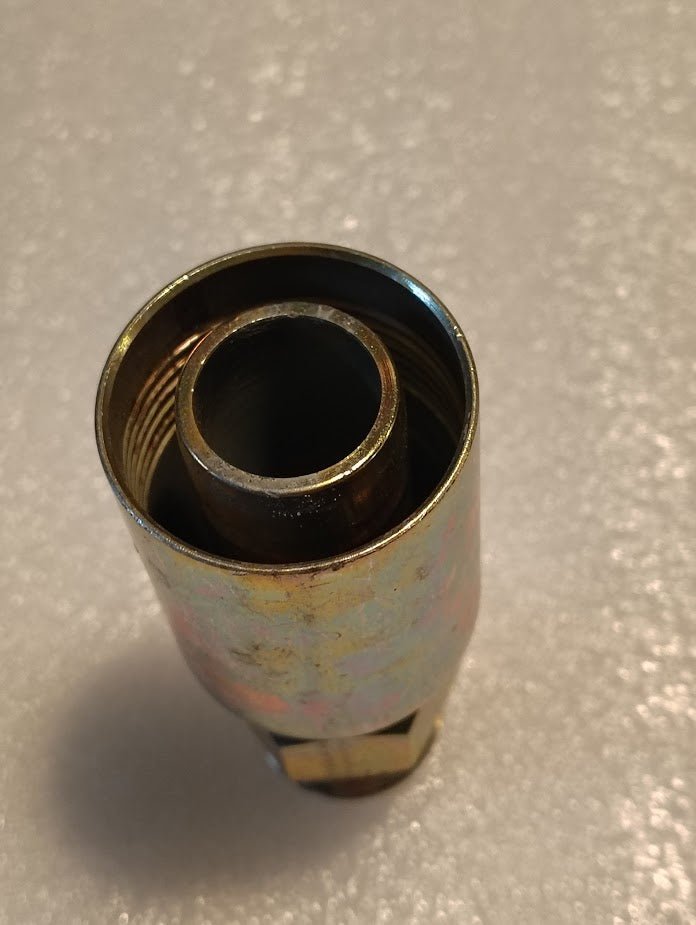

  • A close-up of the Weatherhead 16U-514, a 1 hose x 7/8 SAE male fitting (CS08-16X14) with inner threading, designed for hydraulic systems, shown on a textured light surface.

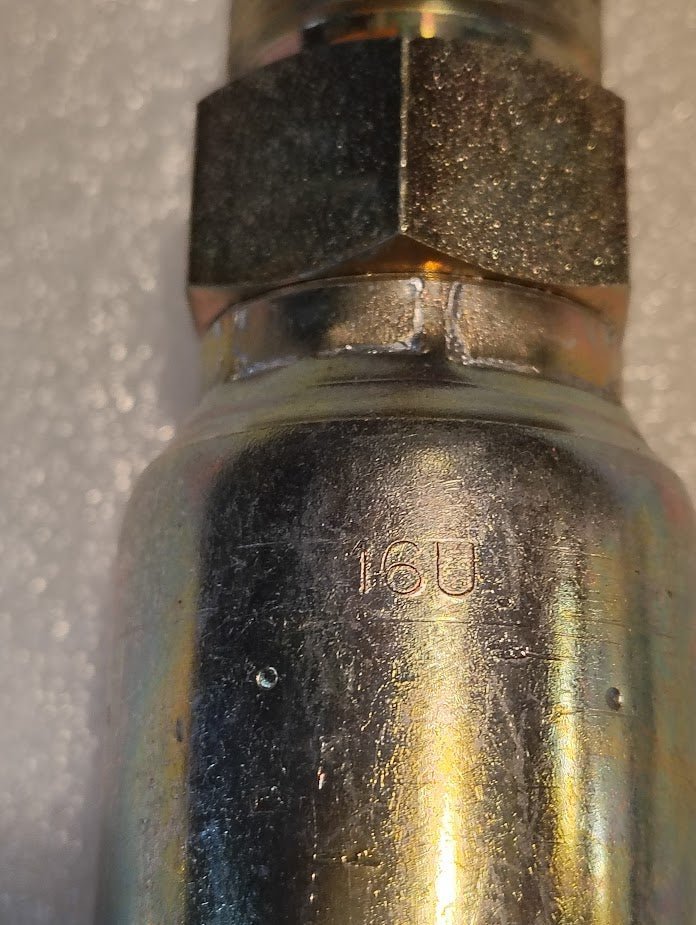

  • Close-up of the Weatherhead 16U-514 fitting (1 hose x 7/8 SAE male), showing its metallic hex nut and “16U” engraving. Ideal for hydraulic hose systems. Shown against a white, textured background. Product code: CS08-16X14.

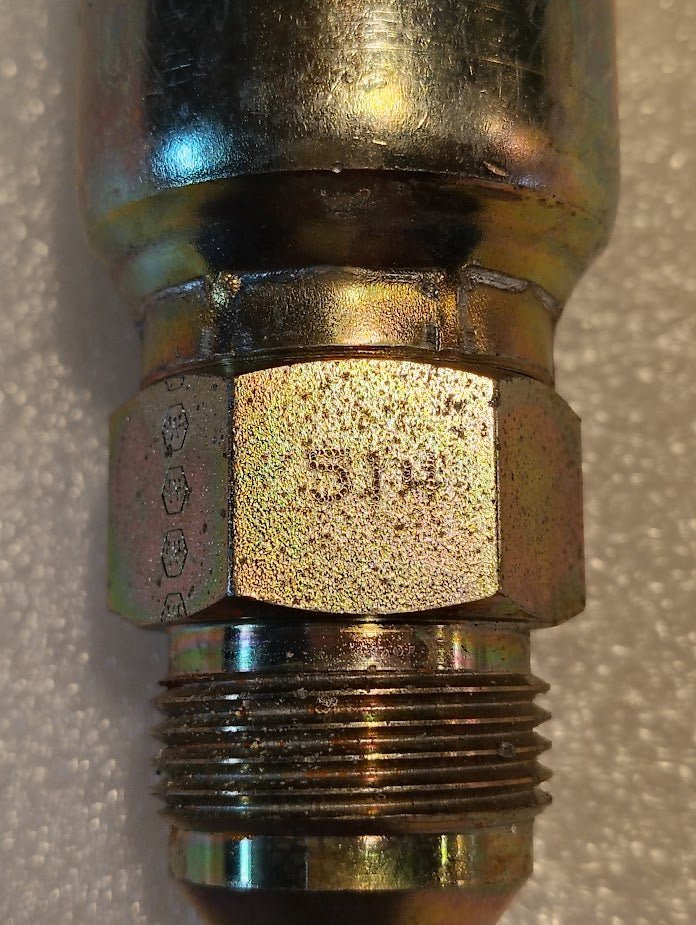

  • A close-up of the Weatherhead 16U-514, a 1 hose x 7/8 SAE male fitting (CS08-16X14), shows its threaded metal hex nut and S18 marking, with an iridescent finish resting on a textured light surface for hydraulic hoses.
1 6

Weatherhead

16U-514 | 1" Hose x 7/8" JIC Solid Fitting - Straight | CS08-16X14

16U-514 | 1" Hose x 7/8" JIC Solid Fitting - Straight | CS08-16X14

$35.00 USD
$35.00 USD
Sale Sold out
Shipping calculated at checkout.

These are new Weatherhead 16U-514 fittings.
Compatible with 100R1, 100R2, 100R16 & 100R17 style hoses.


These fittings can be interchanged with the equivalent Couplamatic, Dayco, and Parker hydraulic hose fittings.

Hose Size: 1"
Fitting Size: 7/8"
Fitting Type: JIC
Fitting Style: Male Solid Straight


Compatible with Couplamatic CS08-16X14
Compatible with Vari-Crimp 1615V
Compatible with Parker 103HY-14-16
Compatible with Dayco HY16-14MJ
