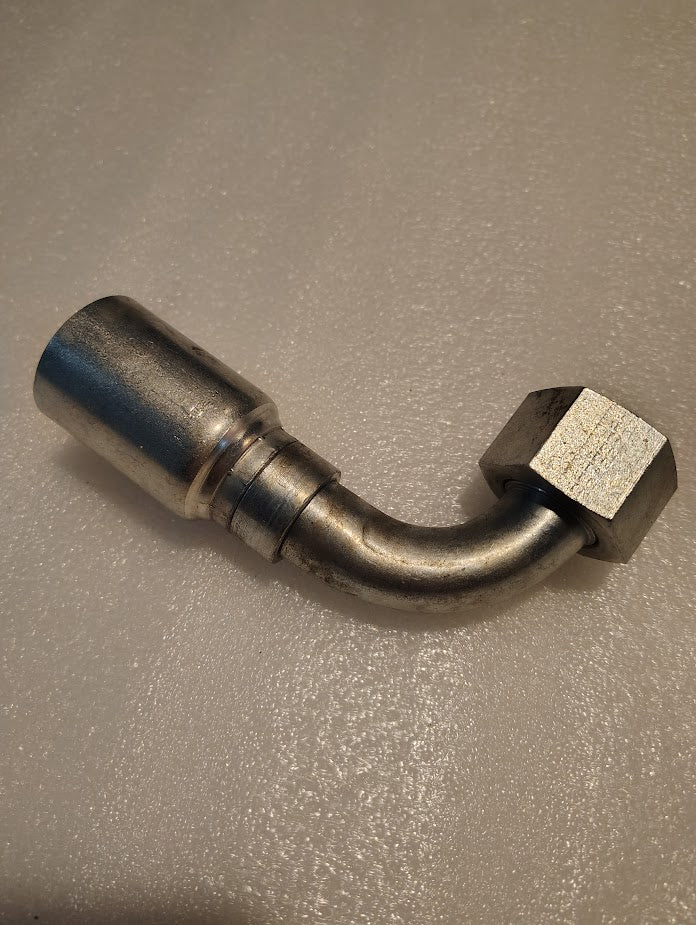

  • The 16U-A36 Weatherhead 1 Hose x 1 ORF Female Fitting (CS32-16X16) is a metal hydraulic fitting with a 90-degree bend, cylindrical end, and hex nut—compatible with 100R1 hoses and Weatherhead fittings.

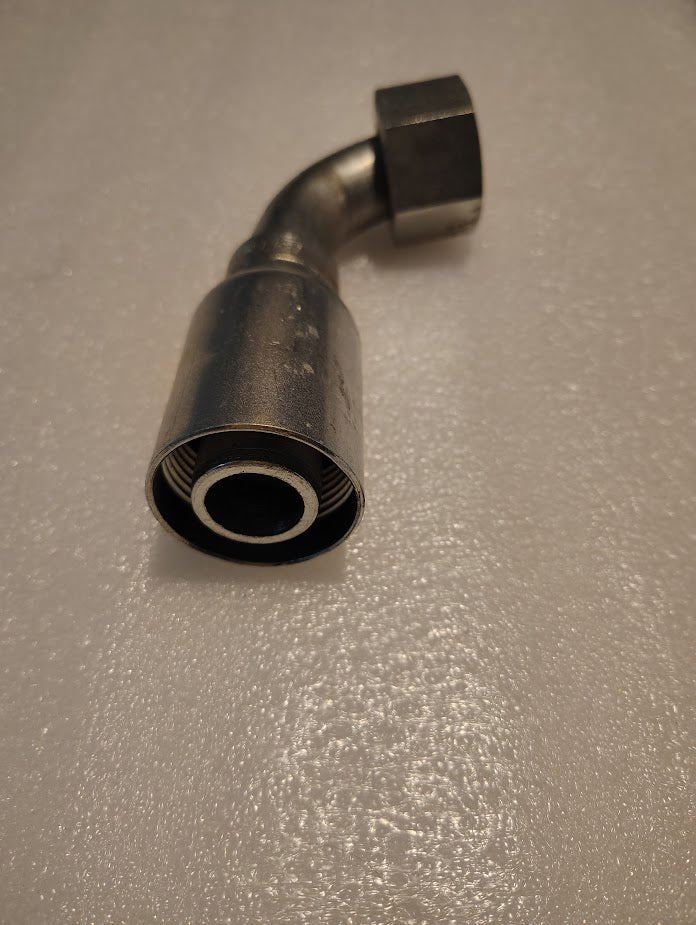

  • The 16U-A36 Weatherhead 1 Hose x 1 ORF Female Fitting (CS32-16X16), a metal hydraulic fitting with a 90-degree elbow and hex nut, is shown on a light, textured surface. Compatible with 100R1 hydraulic hose fittings.

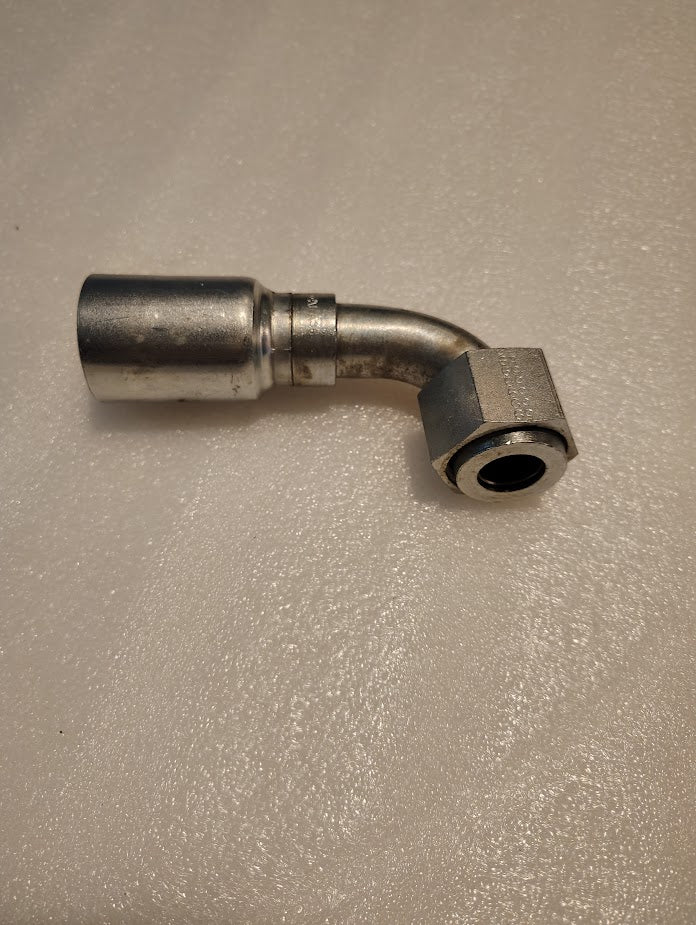

  • A close-up of a 16U-A36 Weatherhead 1 Hose x 1 ORF Female Fitting (CS32-16X16) with a 45-degree bend, threaded end, and hex nut, shown on a textured light surface.

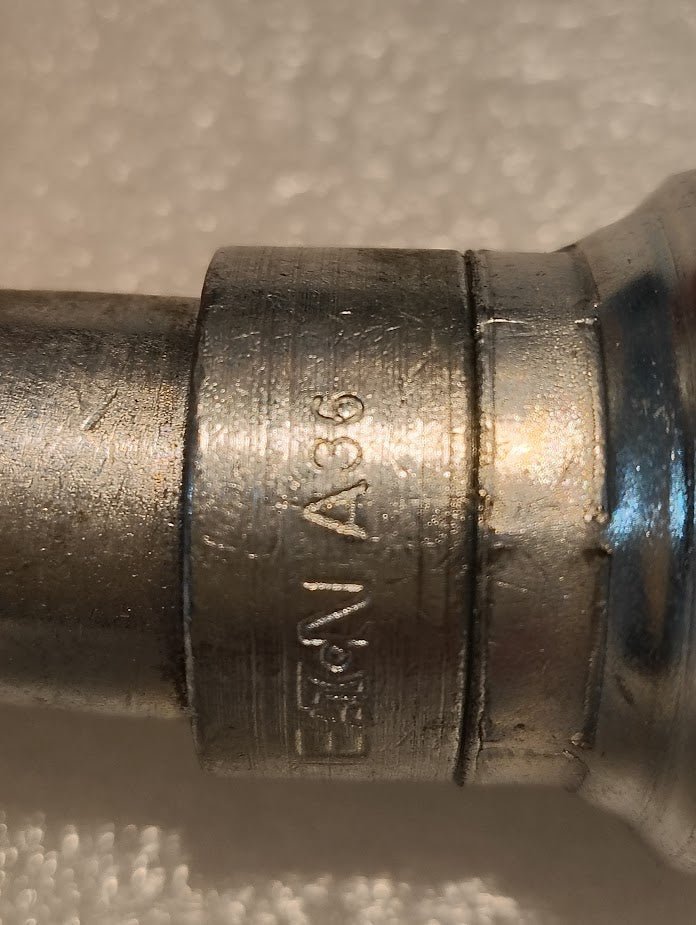

  • Close-up of the 16U-A36 | Weatherhead 1 Hose x 1 ORF Female Fitting (CS32-16X16), featuring a worn, textured metallic surface with faint engravings and threaded section, positioned on a white, slightly textured background.

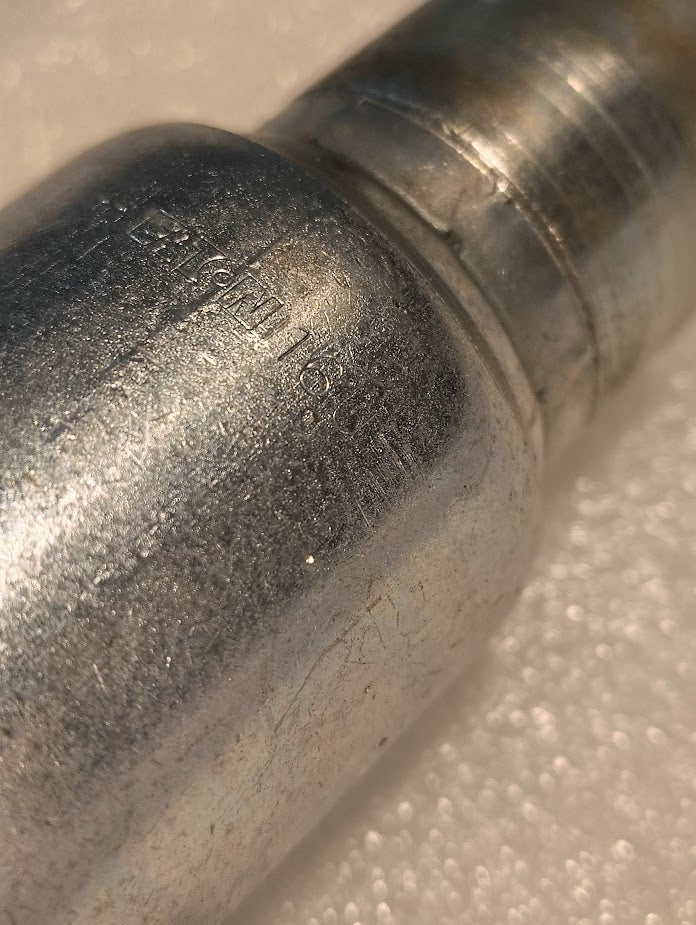

  • Close-up of a Weatherhead 16U-A36 1 Hose x 1 ORF Female Fitting (CS32-16X16), metallic with engraved markings, shown against a textured light-colored background.
1 5

Weatherhead

16U-A36 | 1" Hose x 1" ORFS Swivel Fitting - 90 Short bend | CS32-16X16

16U-A36 | 1" Hose x 1" ORFS Swivel Fitting - 90 Short bend | CS32-16X16

$32.00 USD
$32.00 USD
Sale Sold out
Shipping calculated at checkout.

These are new Weatherhead 16U-A36 fittings.
Compatible with 100R1, 100R2, 100R16 & 100R17 style hoses.


These fittings can be interchanged with the equivalent Couplamatic, Dayco, and Parker hydraulic hose fittings.

Hose Size: 1"
Fitting Size: 1"
Fitting Type: ORFS
Fitting Style: Female Swivel 90 Short bend


Compatible with Couplamatic CS32-16X16
Compatible with Vari-Crimp 16A36V
Compatible with Parker 1J9HY-16-16
Compatible with Dayco HY16-16OF90T
