  • A Weatherhead 16U-A76 (CS33-16X16) 1 hose x 1 ORF female fitting, featuring a hex nut and cylindrical connector, is placed on a textured, light-colored surface. Compatible with Parker fittings.

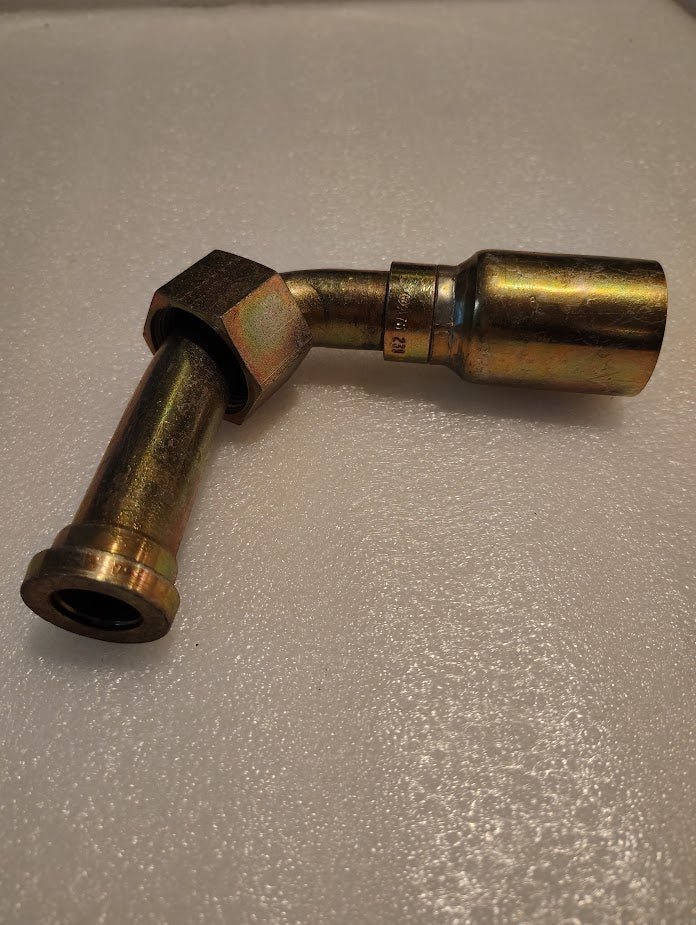

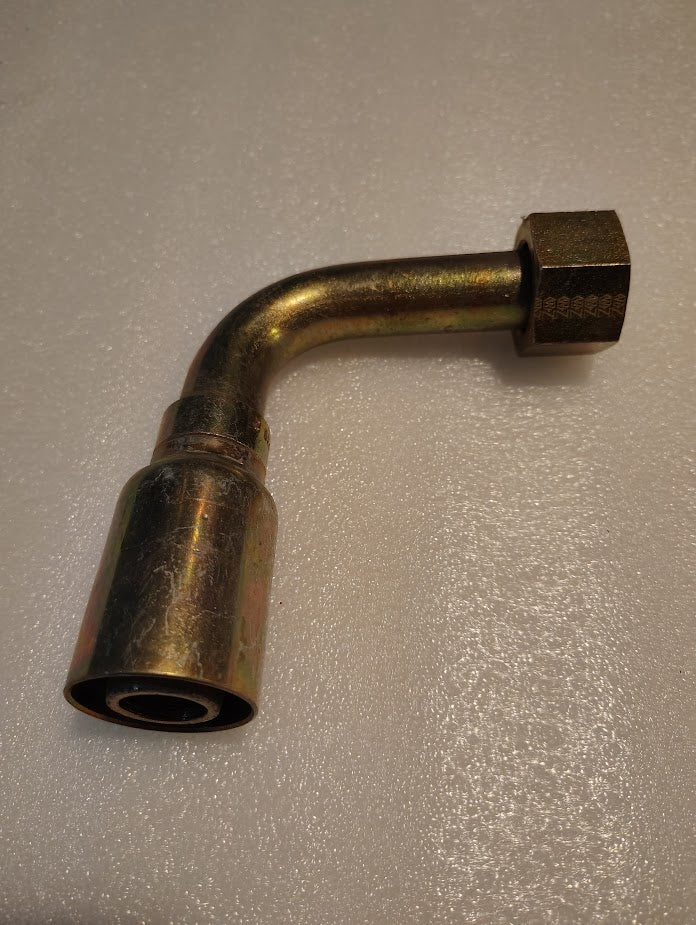

  • The Weatherhead 16U-A76 is a 1 hose x 1 ORF female metallic fitting with a 90-degree bend and hex nut, resting on a textured white surface—compatible with Parker fittings for reliable connections. Model: CS33-16X16.

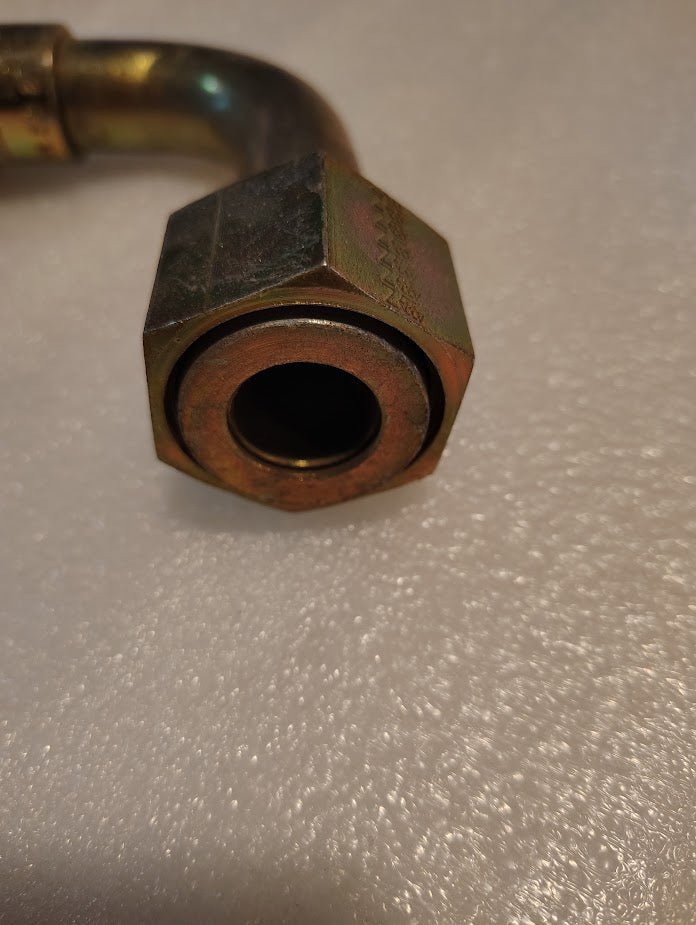

  • Close-up of a Weatherhead 16U-A76 1 hose x 1 ORF female fitting (CS33-16X16) with hexagonal nut on a textured light surface, showing the threaded interior.

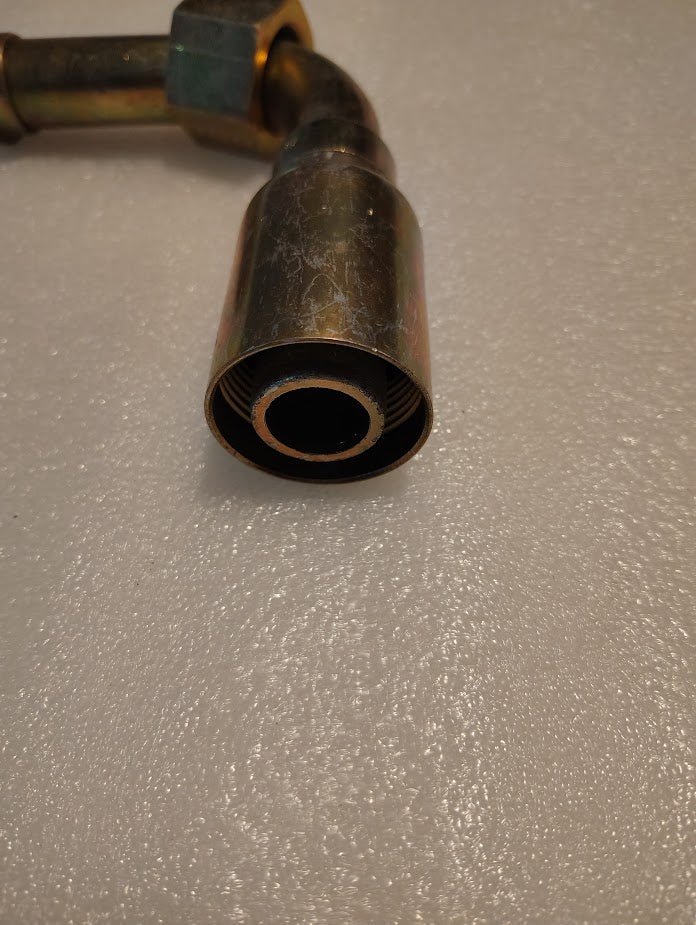

  • Close-up of a 16U-A76 Weatherhead 1 Hose x 1 ORF Female Fitting (CS33-16X16) attached to a bent metal pipe, with the nuts open end facing the camera against a textured, light-colored background.

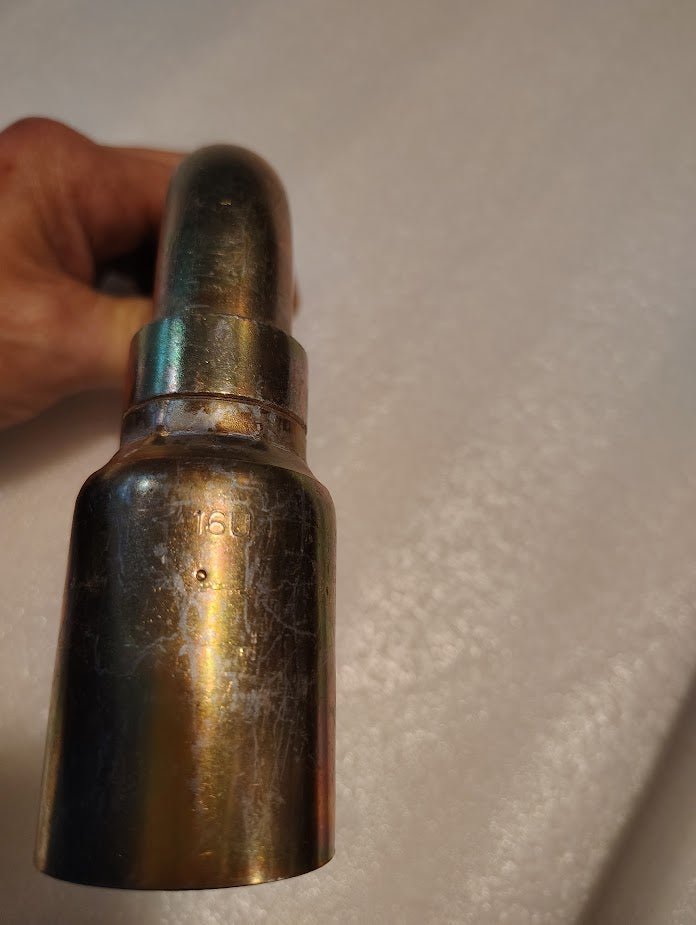

  • A hand holds a 16U-A76 Weatherhead 1 Hose x 1 ORF Female Fitting (CS33-16X16), featuring a curved pipe and flared end, metallic with slight tarnish, set against a light background.

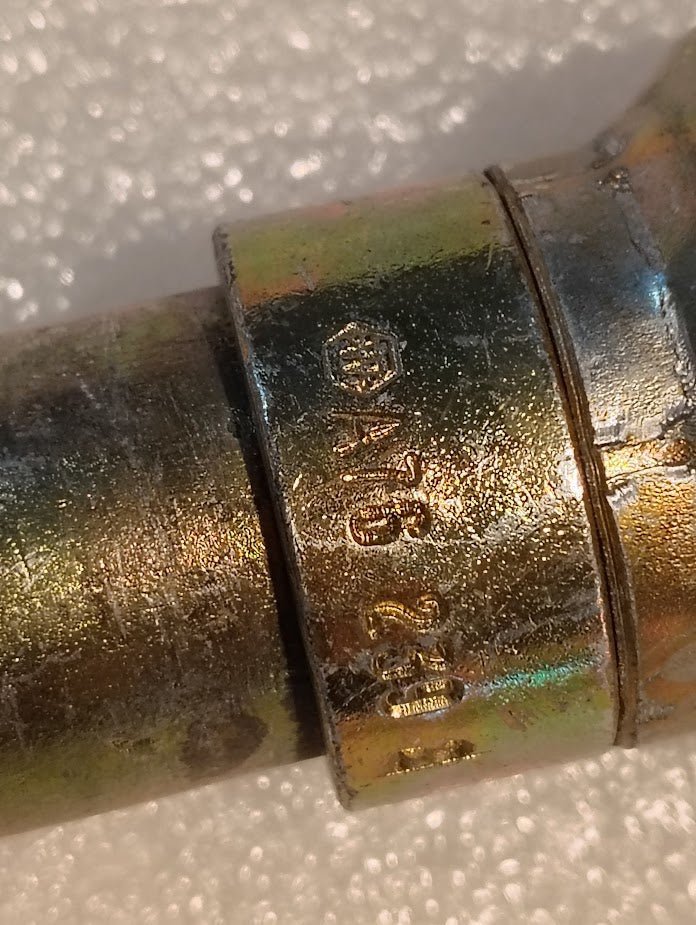

  • Close-up of a Weatherhead 16U-A76 | 1 Hose x 1 ORF Female Fitting (CS33-16X16), metallic with engraved markings, typically used in hydraulic assemblies, displayed on a white textured background.
1 6

Weatherhead

16U-A76 | 1" Hose x 1" ORFS Swivel Fitting - 90 Long bend | CS33-16X16

16U-A76 | 1" Hose x 1" ORFS Swivel Fitting - 90 Long bend | CS33-16X16

$35.00 USD
$35.00 USD
Sale Sold out
Shipping calculated at checkout.

These are new Weatherhead 16U-A76 fittings.
Compatible with 100R1, 100R2, 100R16 & 100R17 style hoses.


These fittings can be interchanged with the equivalent Couplamatic, Dayco, and Parker hydraulic hose fittings.

Hose Size: 1"
Fitting Size: 1"
Fitting Type: ORFS
Fitting Style: Female Swivel 90 Long bend


Compatible with Couplamatic CS33-16X16
Compatible with Vari-Crimp 16A76V
Compatible with Parker 1J1HY-16-16
Compatible with Dayco HY16-16OF90TL
