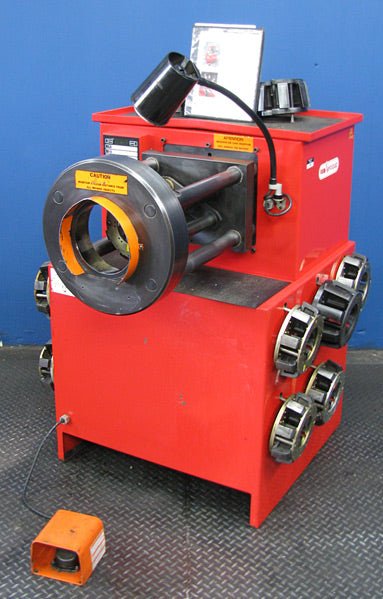

Aeroquip FT1390 w/12 dies

2" 6-wire adjustable hydraulic hose crimper - Reconditioned

This means you can meet the different crimp specs of other hose manufacturers, not just Aeroquip.  The FT1390 crimps fittings to preset dimensions and automatically stops and returns when the crimping operation is completed.  Tooling can be changed quickly.

Condition:  This equipment and tooling has been reconditioned.  The crimper and tooling have a one-year warranty.  Aeroquip is known for making a top-quality and highly reliable hose crimper.

 Features:

• Fast, quiet & easy to operate.
• Crimps 6 spiral hoses thru 2”.
• Crimps most brands & types of hose & fittings.
• Easy to use keypad to set crimp dimensions.
• Ten programmable crimp settings.
• Easy to calibrate.
• Horizontal design makes it easier to hold the hose.
• Simple die cage insertion.
• Full flow hydraulics w/spring return.
• "Soft" retract position.
• 115 vac, 60 hz single phase motor.
• ENERPAC 10,000 psi pump & hydraulics.
• Total weight 825 lbs. (plus tooling)

• Instruction manual included.

 Benefits:

• Minimizes training and mistakes.
• Fast setup time.
• Simplified crimping with programmable crimp settings.
• Minimal maintenance.
• Easy hose insertion.
• Fast cycle time.
• Easy to see work.
• Reliable - Serviceable - Standardized

Tooling Included:

• FT1307-200-M150  (15 to 18 mm)  (0.59” to 0.71”)
• FT1307-200-M180  (18 to 21 mm)  (0.71” to 0.83”)
• FT1307-200-M210  (21 to 24 mm)  (0.83” to 0.95”)
• FT1307-200-M240  (24 to 28 mm)  (0.95” to 1.10”)
• FT1307-200-M280  (28 to 32 mm)  (1.10” to 1.26”)
• FT1307-200-M320  (32 to 37 mm)  (1.26” to 1.46”)
• FT1307-200-M370  (37 to 42 mm)  (1.46” to 1.66”)
• FT1307-200-M420  (42 to 46.5 mm)  (1.66” to 1.83”)
• FT1307-200-M465  (46.5 to 52.0 mm)  (1.83” to 2.05”)
• FT1307-200-M520  (52.0 to 55.0 mm)  (2.05” to 2.17”)
• FT1307-200-M550  (55 to 69.0 mm)  (2.17” to 2.71”)
• FT1307-200-M690  (69 to 73.0 mm)  (2.71” to 2.87”)

NOTE:  Don't need all the tooling listed above?  No problem.  Email us your exact needs at fpeinc@comcast.net and we’ll send you a revised quote.  For faster service please call us at 423/821-4183.

This equipment must ship by truck,  Email us your Zip Code, and we'll gladly furnish a shipping quote.
