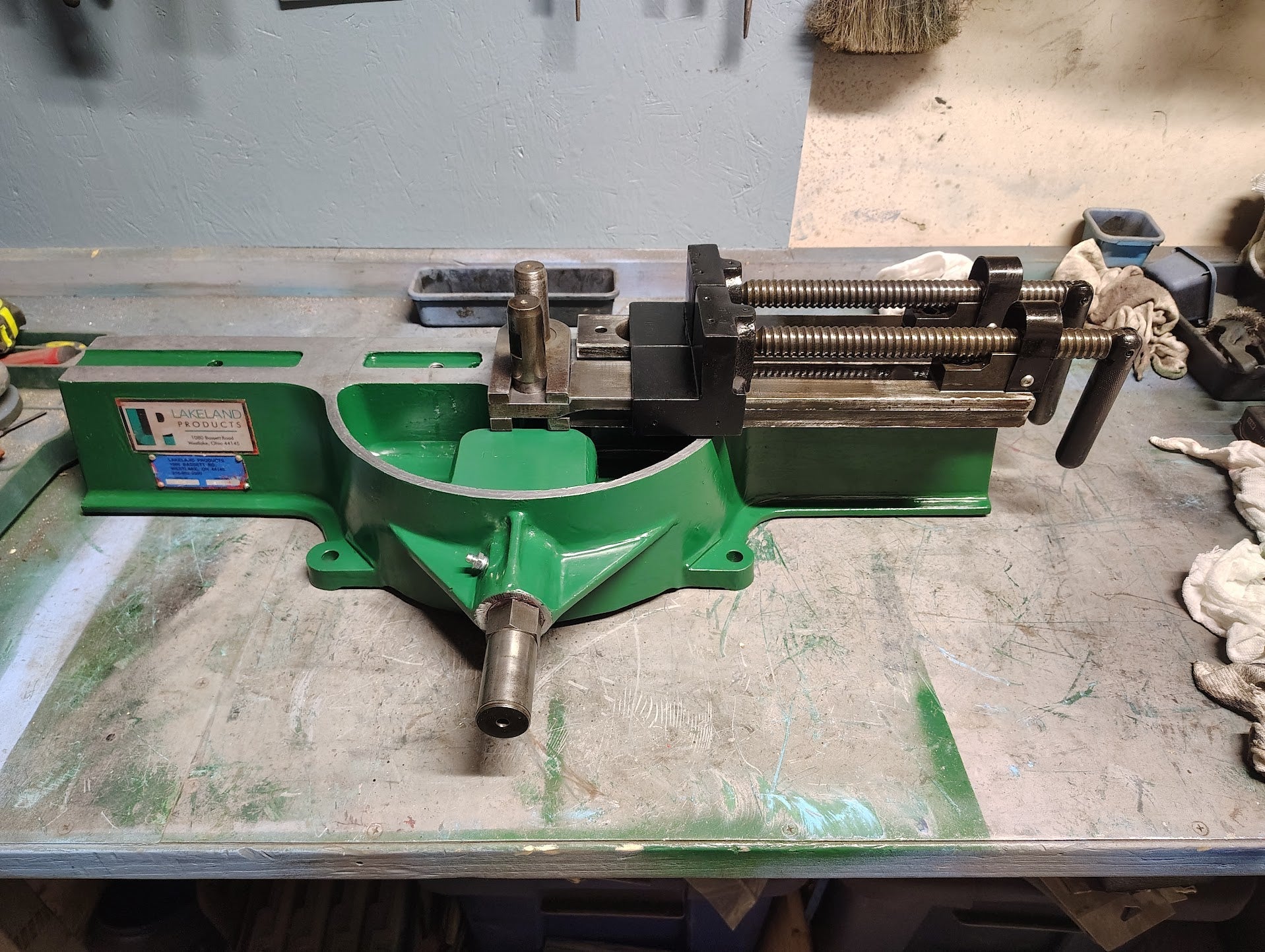

Lakeland 624 Heavy Duty Bender - Reconditioned
Lakeland 624 Heavy Duty Bender - Reconditioned
Lakeland 624
1-1/2" Hydraulic Tube Bender - Reconditioned
This is an easy-to-use economical heavy-duty bender. This unit was designed for maintenance, prototype work, and low production requirements. If you do any tube fabrication or want to get into the tubing business, this is a very versatile machine to own. And, Lakeland has a reputation for making top-quality and highly reliable tube fabrication equipment.
This tube bender has been reconditioned to like-new condition and comes with a one-year warranty. Since 1960, the staff rebuilding this equipment has been active in the design, manufacture, assembly, repair, and reconditioning of tube benders, end-finishing machines, flaring machines, and hydraulic power supplies.
Includes tooling for 1/2", 5/8", 3/4" & 1" tubing.
Additional new and used tooling is available for this unit and can be quoted as a custom package. Call us at 423.821.4183 to discuss your needs.
Specifications
- 3/8" to 1-1/2" O.D. Tubing.
- 6 mm - 32 mm O.D. Metric Tubing.
- 1/8" - 1" Iron Pipe (I.P.S.)
- Bi-Directional Bending
- 4:1 Gear Drive
- Quick Clamp Engagement
- Bench Mounting
- Radius Block Variety
- Combination Slide & Clamp Block
- Mandrel Capability
- Weight (machine only): 120 lbs.
Features
- Bends virtually all popular sizes.
- Makes right or left-hand bends.
- Makes opposite direction or "s" type bends.
- Easy shifting of clamp block arm provides quick changeover for right or left-hand bends.
- Bends larger material without operator fatigue.
- The high-speed mechanical advantage is to bend the heaviest tubing and up to Schedule 40 pipe.
- Standard clamp and slide block arms use speed screw and half-nut to quickly engage and disengage tooling.
- Can be bench or table mounted.
- No need for a special cabinet or stand.
- No additional floor space requirements.
- Meet virtually any bend radius specification. Unique "Flare End" block allows bend adjacent to flare.
- Radius blocks are available for metric tubing, rigid conduit, and Schedule 40 pipe.
- Only three slide clamp blocks cover the full-size range.
- Easily converted to bend thin-wall tube with the use of optional mandrels.
This equipment is subject to prior sale.
Equipment must ship via common carrier. Call us at 423.821.4183 with your Zip Code, and we will gladly furnish you with a shipping quote.
