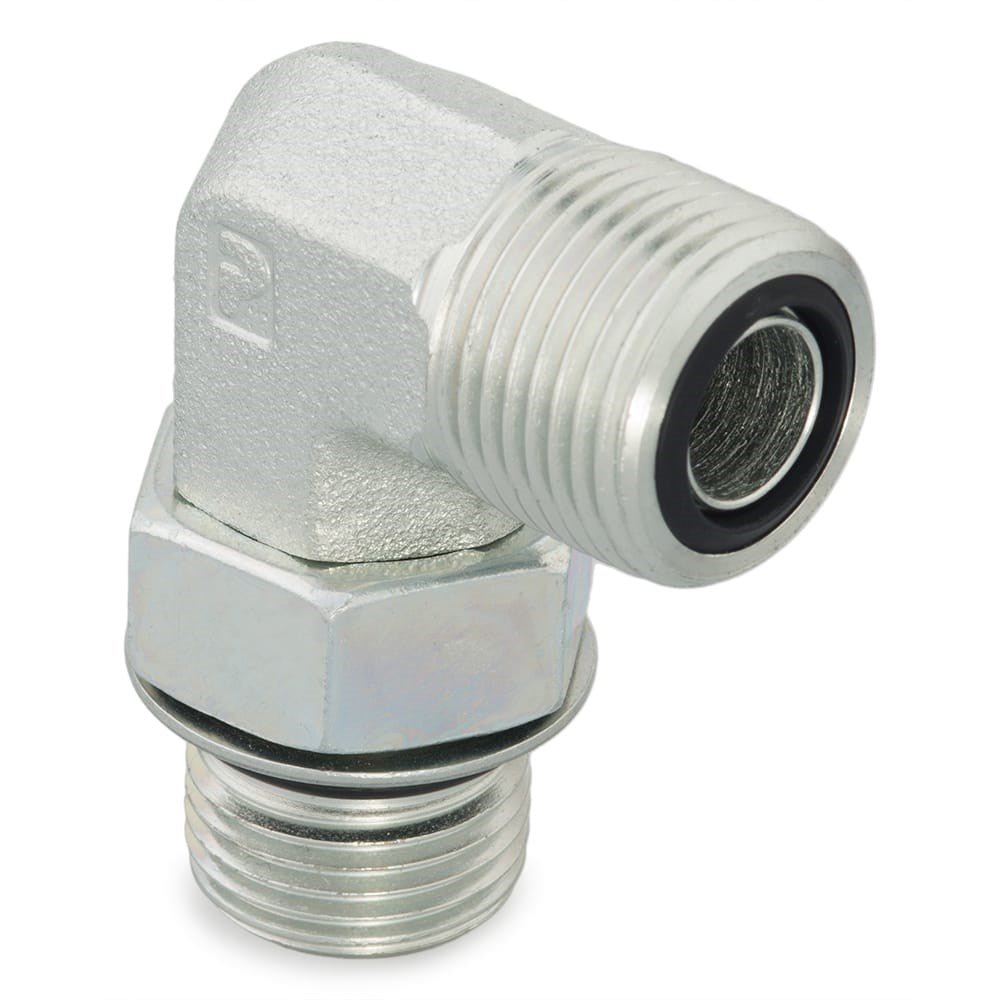

10 C5OLO-SS | Seal-Lok ORFS 90 deg Tube Fitting

Parker 10 C5OLO-SS

Seal-Lok O-Ring Face Seal Tube Fitting

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. The Seal-Lok fitting is an O-ring face seal type fitting that consists of a nut, a body, an O-ring and a sleeve. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Seal-Lok fittings have proven to be very effective in eliminating leakage at the higher pressures found in today€™s hydraulic systems. They are suitable for a wide range of tube wall thicknesses and are readily adaptable to pipe, inch or metric tubing and hose.

Specifications:

End 1:                                     5/8 inch

End 2:                                     7/8-14 UN/UNF-2A

Material:                                  Stainless Steel

UOM:                                      EA

Trade Name:                          Seal-Lok

Series:                                    ORFS

Tube Fitting/Adapter Type:     ORFS, Seal-Lok O-Ring Face Seal

Configuration Type:                90 deg Elbow

Configuration Sub-Type:        Straight Thread Elbow ORFS / SAE-ORB

Inch/Metric                             Inch

End 1 Type:                           Inch

End 2 Type:                           UN/UNF-2A
