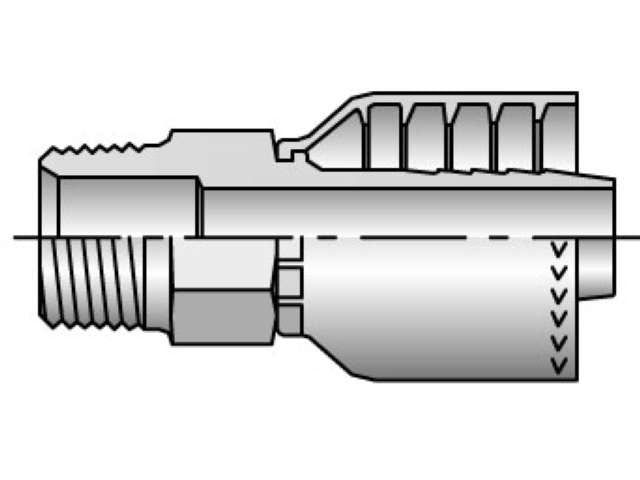

• This diagram showcases a steel hydraulic fitting with threaded ends and a barbed section, providing a cross-sectional view of the crimp-type hose end. It details the internal structure and fluid passage path through the 10171-12-8 Male NPTF Pipe Fitting - Rigid connector.
1 1

Parker

10171-12-8 | Male NPTF Pipe Fitting - Rigid

10171-12-8 | Male NPTF Pipe Fitting - Rigid

$13.59 USD
$0.00 USD $13.59 USD
Sale Sold out

Parker 10171-12-8  Male NPTF Pipe - Rigid

Specifcations

  • Crimp Type Hose End
  • Male NPTF Pipe
  • Rigid
  • Straight
  • 71 Series
  • 3/4" NPT X 1/2" ID Hose
  • Steel
