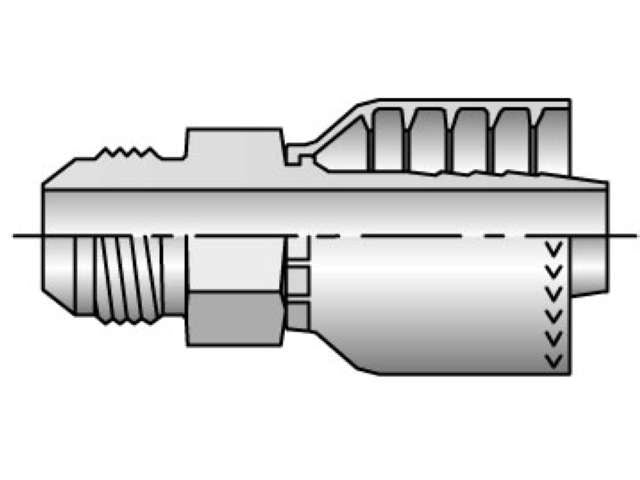

• Technical diagram of a steel hydraulic hose fitting, specifically the 10371-20-16 Male JIC 37° Rigid Fitting. The image provides a cross-sectional view showcasing the threaded end, compression sleeve, and crimp-type hose end. Internal details such as grooves and patterns indicate flow direction for this connection type.
1 1

Parker

10371-20-16 | Male JIC 37 deg Fitting - Rigid

10371-20-16 | Male JIC 37 deg Fitting - Rigid

$32.06 USD
$0.00 USD $32.06 USD
Sale Sold out

Parker 10371-20-16  Male JIC 37 deg - Rigid

Specifcations

  • Crimp Type Hose End
  • Male JIC 37 deg
  • Rigid
  • Straight
  • 71 Series
  • 1-1/4" NPT X 1" ID Hose
  • Steel
