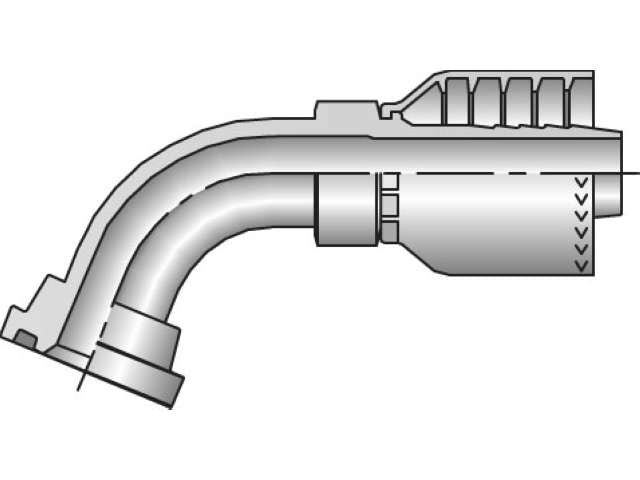

• Illustration of a curved mechanical pipe with a gear-like structure on top and a cylindrical extension at the end. This Parker Hydraulic Spiral Hose incorporates the 11871-20-20 SAE Code 61 Flange Head, featuring a 67-1/2 degree elbow fitting that bends at the required angle, seamlessly integrating for industrial use and optimal performance.
1 1

Parker

11871-20-20 | SAE Code 61 Flange Head - 67-1/2 deg Elbow Fitting

11871-20-20 | SAE Code 61 Flange Head - 67-1/2 deg Elbow Fitting

$47.36 USD
$0.00 USD $47.36 USD
Sale Sold out

Parker 11871-20-20  SAE Code 61 Flange Head - 67-1/2 deg Elbow

Specifcations

  • Crimp Type Hose End
  • SAE Code 61 Flange Head
  • 67-1/2 deg Elbow
  • 71 Series
  • 1-1/4" Flange X 1-1/4" ID Hose
  • Steel

Parker 71 Series Fittings is a Parkrimp permanent (crimp) style fitting that permits quick assembly with Parkrimp crimpers. Assembly of No-Skive hose and fittings does not require the removal of the outer cover of the hose. This eliminates premature hose failure caused by skiving too long or short. 71 Series Fittings have Chromium-6 free plating and are used with Parker Hydraulic Spiral Hose.
