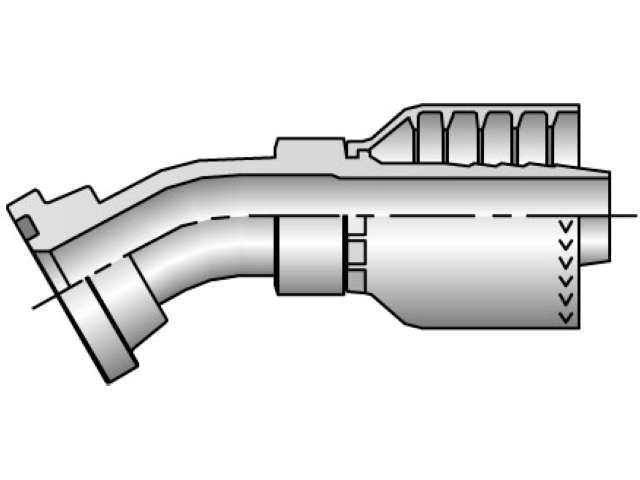

12671-24-24 | SAE Code 61 Flange Head - 30 deg Elbow Fitting

Parker 12671-24-24  SAE Code 61 Flange Head - 30 deg Elbow

Specifcations

Crimp Type Hose End

SAE Code 61 Flange Head

30 deg Elbow

71 Series

1-1/2" Flange X 1-1/2" ID Hose

Steel

Parker 71 Series Fittings is a Parkrimp permanent (crimp) style fitting that permits quick assembly with Parkrimp crimpers. Assembly of No-Skive hose and fittings does not require the removal of the outer cover of the hose. This eliminates premature hose failure caused by skiving too long or short. 71 Series Fittings have Chromium-6 free plating and are used with Parker Hydraulic Spiral Hose.
