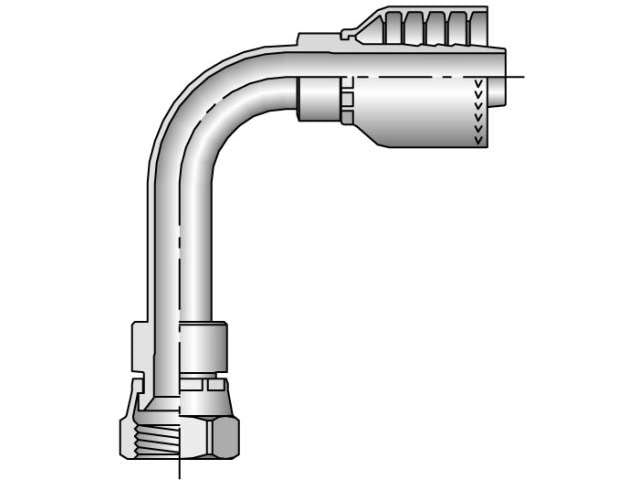

14171-16-16 | Female JIC 37 deg - Swivel - 90 deg Elbow - Long Drop Fitting

Parker 14171-16-16  Female JIC 37 deg - Swivel - 90 deg Elbow - Long Drop

Specifcations

• Crimp Type Hose End
• Female JIC 37 deg
• Swivel

• 90 deg Elbow
• Long Drop

• 71 Series
• 1" JIC 37 deg X 1" ID Hose
• Steel


Parker 71 Series Fittings is a Parkrimp permanent (crimp) style fitting that permits quick assembly with Parkrimp crimpers. Assembly of No-Skive hose and fittings does not require the removal of the outer cover of the hose. This eliminates premature hose failure caused by skiving too long or short. 71 Series Fittings have Chromium-6 free plating and are used with Parker Hydraulic Spiral Hose.
