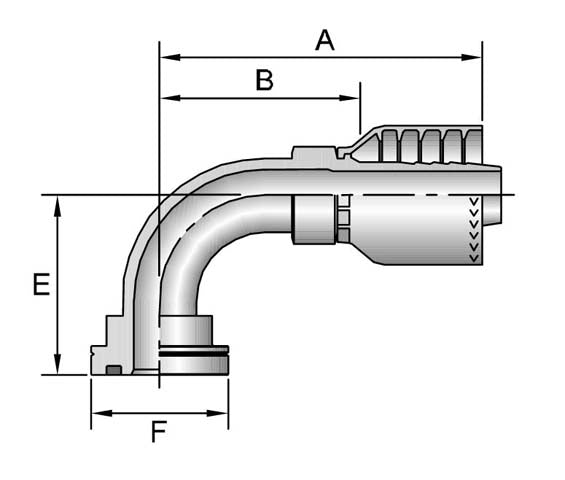

• Technical diagram of the 16N71-32-32 fitting showing a 90-degree elbow with Code 62 flange head. Measurements are labeled A, B, E, and F. The fitting features a curved section and connection point with arrows indicating measurement directions. Ideal for incorporating into a hydraulic spiral hose system.
1 1

Parker

16N71-32-32 | Code 62 Flange Head - 90 deg Elbow

16N71-32-32 | Code 62 Flange Head - 90 deg Elbow

$152.60 USD
$0.00 USD $152.60 USD
Sale Sold out

Parker 16N71-32-32  Code 62 Flange Head - 90 deg Elbow

Specifcations

  • Crimp Type Hose End
  • Code 62 Flange Head
  • 90 deg Elbow
  • 71 Series
  • 2" Flange X 2" ID Hose
  • Steel

Parker 71 Series Fittings is a Parkrimp permanent (crimp) style fitting that permits quick assembly with Parkrimp crimpers. Assembly of No-Skive hose and fittings does not require the removal of the outer cover of the hose. This eliminates premature hose failure caused by skiving too long or short. 71 Series Fittings have Chromium-6 free plating and are used with Parker Hydraulic Spiral Hose.
