1C971-25-12 | Female Metric S - Swivel -(24 deg Cone with O-Ring Fitting

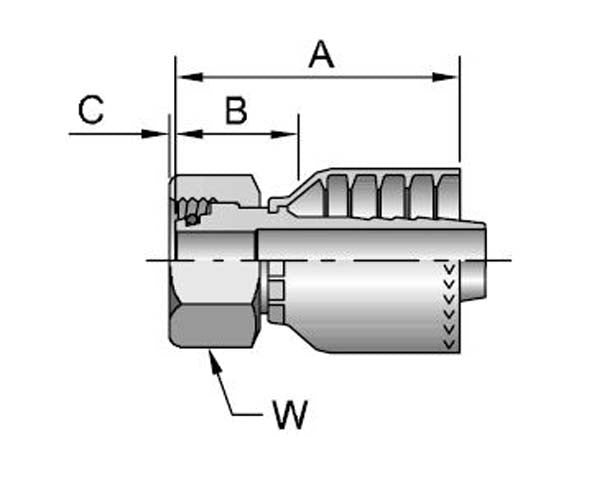

Parker 1C971-25-12  Female Metric S - Swivel - (24 deg Cone with O-Ring)

Specifcations

• Crimp Type Hose End
• Female Metric S
• Swivel
• 24 deg Cone with O-Ring

• 71 Series
• M36x2 Fittting X 3/4" ID Hose
• Steel


Parker 71 Series Fittings is a Parkrimp permanent (crimp) style fitting that permits quick assembly with Parkrimp crimpers. Assembly of No-Skive hose and fittings does not require the removal of the outer cover of the hose. This eliminates premature hose failure caused by skiving too long or short. 71 Series Fittings have Chromium-6 free plating and are used with Parker Hydraulic Spiral Hose.
