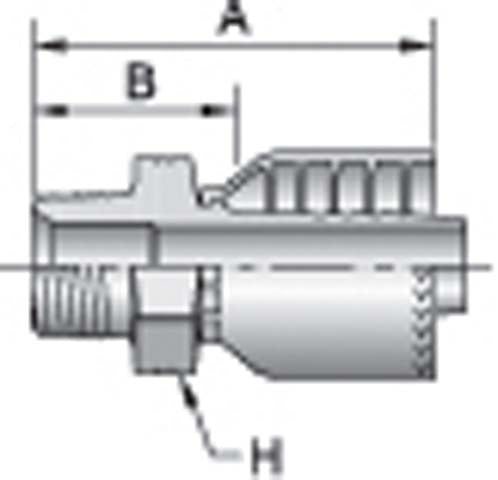

• The technical drawing displays a Parker 1UT71-12-12 fitting, with dimensions labeled as A, B, and H. The fitting includes a BSP Taper Pipe threaded section on the left and a rigid coupling on the right. Measurement directions are indicated by arrows.
1 1

Parker

1UT71-12-12 | Male BSP Taper Pipe - Rigid - Straight - 60° Cone Fitting

1UT71-12-12 | Male BSP Taper Pipe - Rigid - Straight - 60° Cone Fitting

$29.85 USD
$0.00 USD $29.85 USD
Sale Sold out

Parker 1UT71-12-12  Male BSP Taper Pipe - Rigid - Straight - 60° Cone

Specifcations

  • Crimp Type Hose End
  • Male BSP Taper Pipe
  • Rigid
  • Straight
  • 60° Cone
  • 71 Series
  • G3/4" BSPP Fittting X 3/4" ID Hose
  • Steel

Parker 71 Series Fittings is a Parkrimp permanent (crimp) style fitting that permits quick assembly with Parkrimp crimpers. Assembly of No-Skive hose and fittings does not require the removal of the outer cover of the hose. This eliminates premature hose failure caused by skiving too long or short. 71 Series Fittings have Chromium-6 free plating and are used with Parker Hydraulic Spiral Hose.
